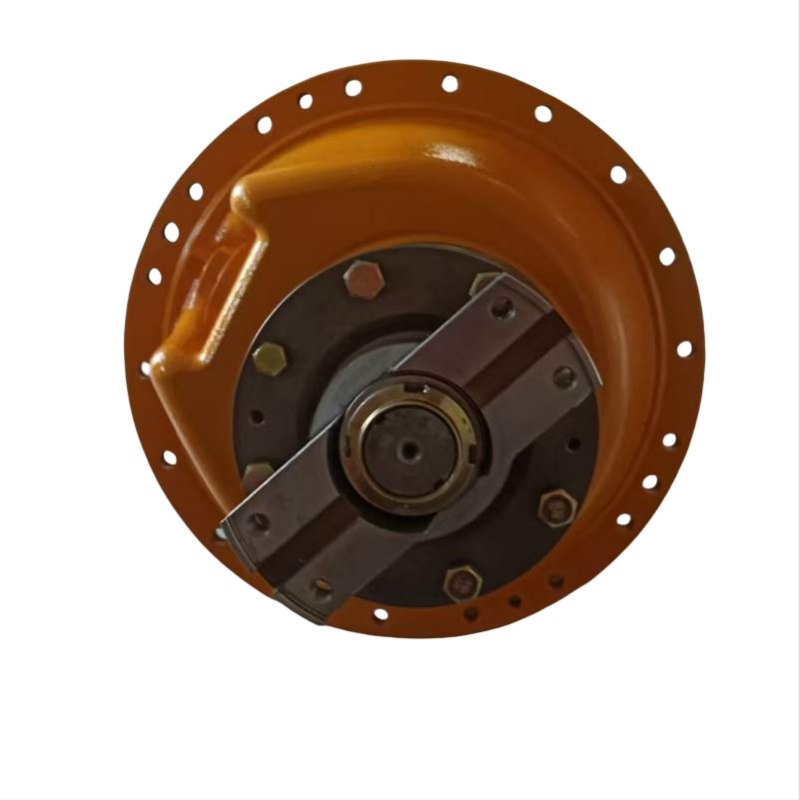

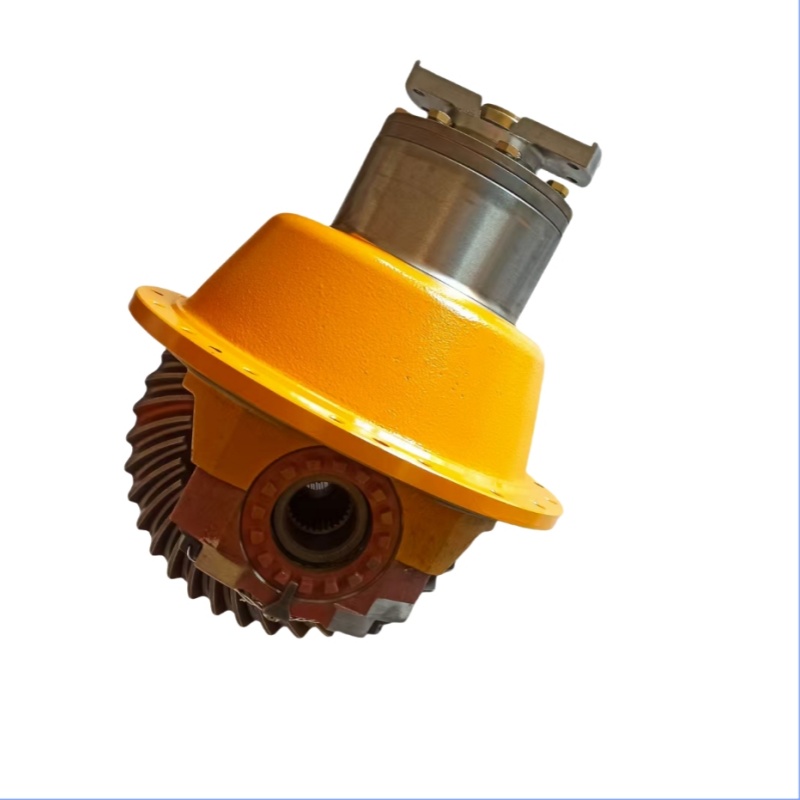

Loader Accessory Rear Main Reducer Assembly
1. Original high-quality parts, standard host matching, high compatibility with the whole machine, easy disassembly and exchange.
2. Made of high-quality steel, strengthened by heat treatment, wear-resistant and impact resistant, effectively extending the service life of components.
3. The transmission runs smoothly, with low working noise, resistance to heavy load impact, and high reliability of the entire machine operation.
4. Our own production factory workshop can support customized non-standard processing services according to working conditions.
5. High cost-effective pricing, strict quality inspection throughout the entire process, and stable and guaranteed product quality.
6. The factory has sufficient inventory, professional warehouse management, complete logistics support, and efficient and fast delivery and distribution.
Loader Accessory Rear Main Reducer Assembly

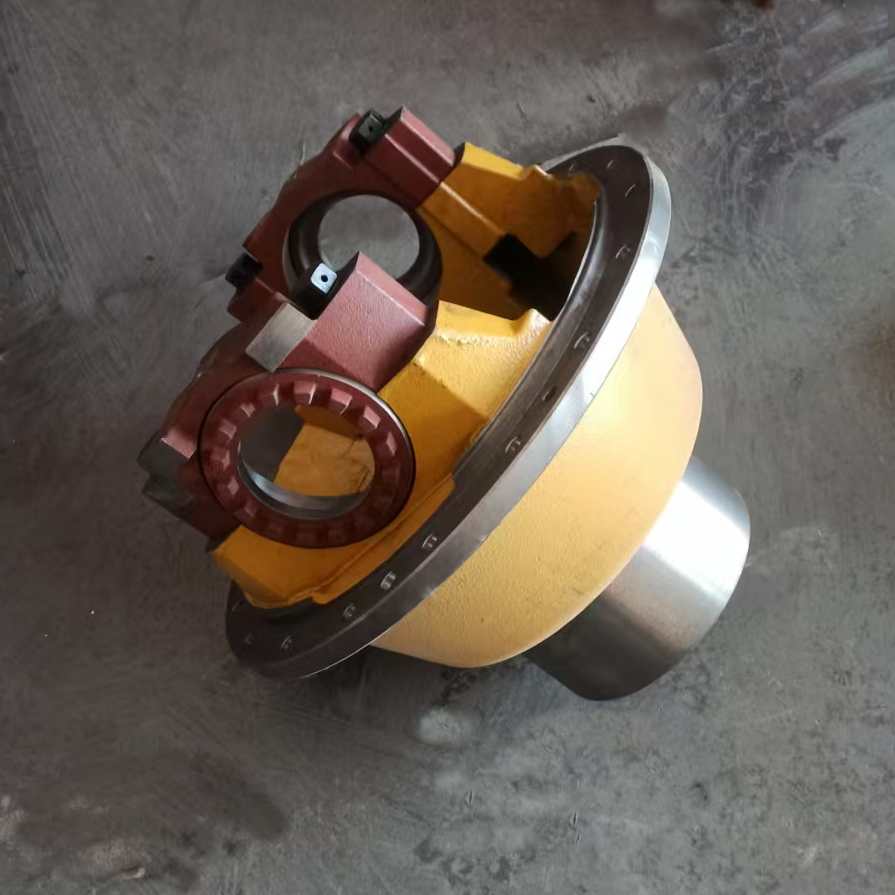

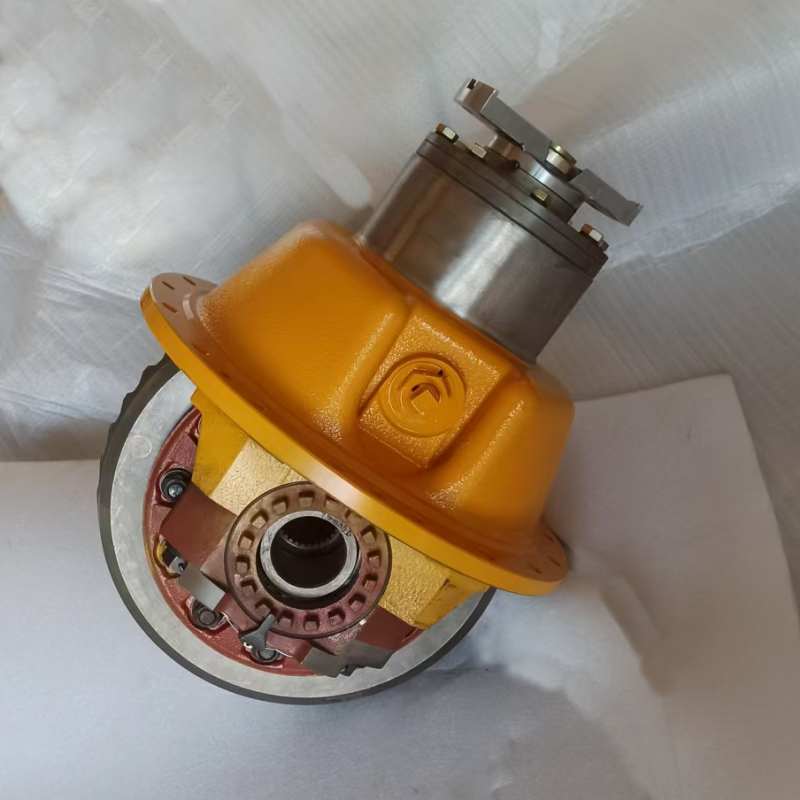

The main reducer assembly is a 6-ton wheel loader Yunyu drive axle component, made of high wear-resistant materials, with the characteristics of low noise and durability, commonly used in LOVOL, ENSIGN, Degong and other brand loaders. It consists of Yunyu 60 reinforced differential assembly, bevel gear pair, housing, locking nut, oil seal, bearings 31313, 31314, 32018X and other components.
Assembly Process Of Yunyu 60 Main Reducer Assembly:

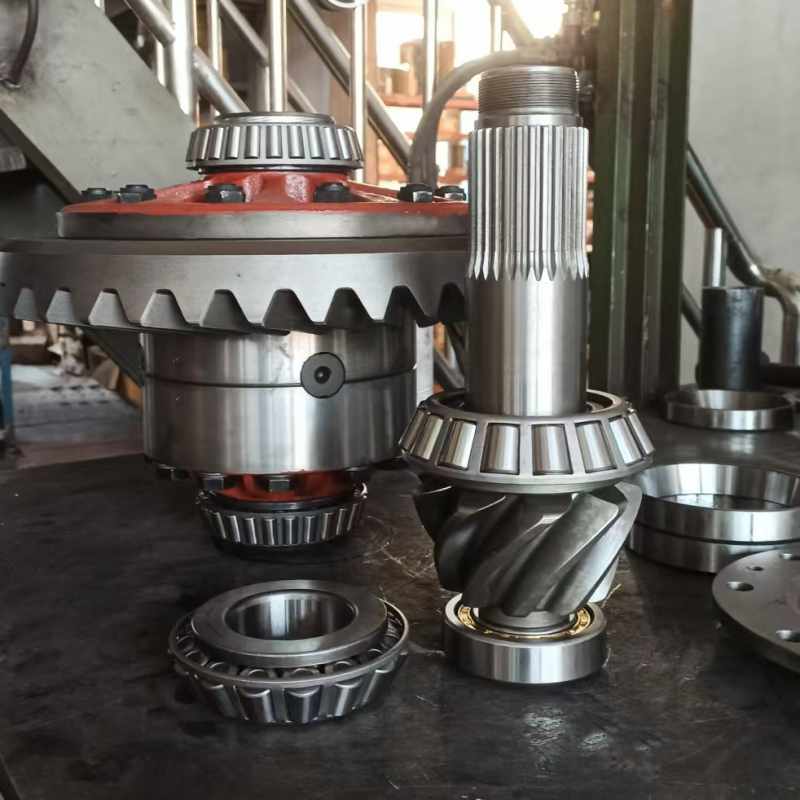

1. Before assembling the main reducer assembly of Yunyu 60 model, thorough preparations should be made. This includes cleaning all parts and checking the dimensions, shapes and mating surfaces of all parts to ensure they meet the design requirements.
2. The driven gear and the differential assembly are fastened together through bolts. It is necessary to ensure that the tightening torque of the bolts complies with the design requirements to prevent loosening or damage of the connection.
Heat the conical roller bearings to 120℃ and ensure their correct installation on the differential housing. Then press them in place to ensure the correct installation and stability of the gears and bearings. Then securely install the differential into the transmission housing and install the main reducer bearing cover.
3. During assembly, check the friction torque. The meshing clearance of the driven gear and the preload of the bearings need to be found using specialized detection instruments to ensure the optimal working position of the gears and guarantee smooth operation.
After assembly, conduct a comprehensive inspection of the main reducer assembly of Yunyu 60 model to ensure its normal operation and performance stability.
Characteristics of the 6-ton main reducer assembly for loaders
1. Solid gear technology: Spiral bevel gears are made of alloy steel and undergo carburizing and quenching heat treatment. The tooth surface hardness is high, and the meshing is precisely matched, resulting in low vibration and noise.
2. Strong bearing capacity: Suitable for heavy load conditions of 6-ton loaders, it can withstand large torque and impact loads caused by shoveling and climbing, and has good overload resistance.
3. Sensitive differential response: The standard conical planetary differential structure evenly distributes torque during straight-line driving; Turning and uneven road surfaces can achieve wheel speed difference and reduce tire wear.
4. Reliable sealing and lubrication: Optimized oil seal and housing sealing structure, built-in lubricating oil passage, fully lubricated gear bearings, reducing wear under high temperature conditions.
5. Good assembly interchangeability: Yunyu's original factory matching size, hole position, and stopper accuracy are high, making disassembly and maintenance convenient, and the universality of accessories is strong.
Core advantages of 6-ton Yunyu drive axle loader
1. High transmission efficiency: gear grinding processing, good meshing state, low power loss, fully released traction force of the whole machine, stable fuel consumption performance.
2. Durable under harsh working conditions: Suitable for frequent heavy load operations in sand and gravel factories, construction sites, and mines, it is impact resistant, not easy to bite or break, and reduces downtime for maintenance.
3. Easy debugging and maintenance: The gasket and nut can accurately adjust the gear mesh clearance, making maintenance and disassembly simple, and low maintenance costs in the later stage.
4. Original factory quality assurance: The Yunyu drive axle original supporting assembly has undergone torque, engagement, and sealing pressure testing before leaving the factory, with stable consistency and high replacement reliability.
Suitable for 6-ton Yunyu drive axle loader, it can be matched with wheel side planetary reduction assembly to achieve two-stage reduction transmission of the whole machine.
