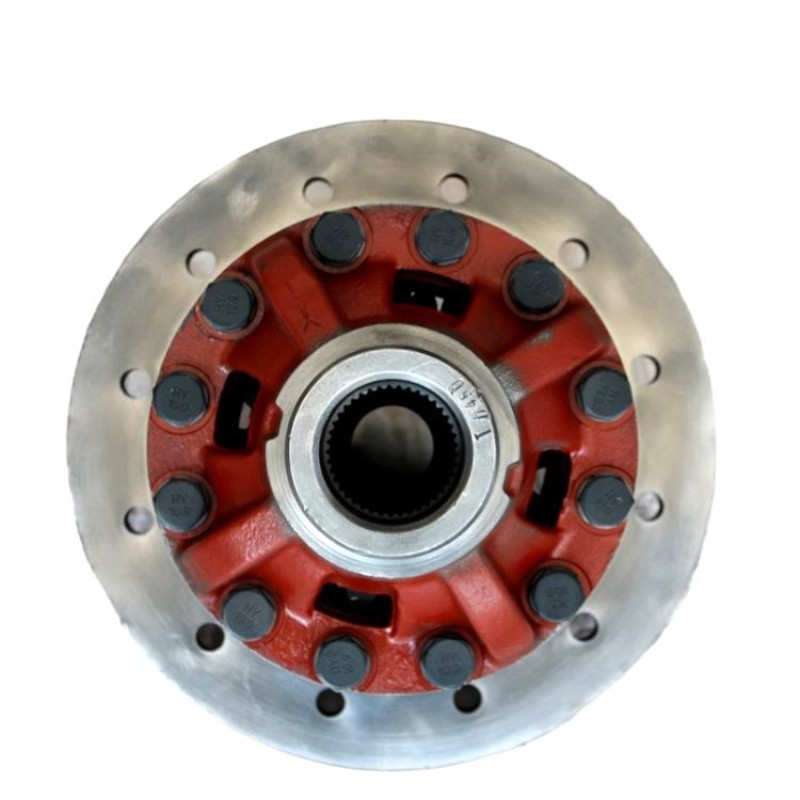

Differential Assembly 5Ton Loader parts
1. Original high-quality components, precise equipment matching, high matching accuracy, excellent interchangeability, easy installation and replacement. .
2. Made of high-end alloy steel, it is wear-resistant, corrosion-resistant, impact resistant, and significantly extends its service life.
3. Stable braking performance, low operating noise, strong pressure resistance, and sustainable stable operation.
4. Directly supplied by the source factory, with its own processing production line, supporting customized processing for special working conditions.
5. Cost effective pricing with strict quality inspection and assurance for each process.
6. The factory has sufficient spot inventory and is connected to multiple cooperative logistics companies for fast delivery and transportation, making logistics convenient.
Differential Assembly 5Ton Loader parts

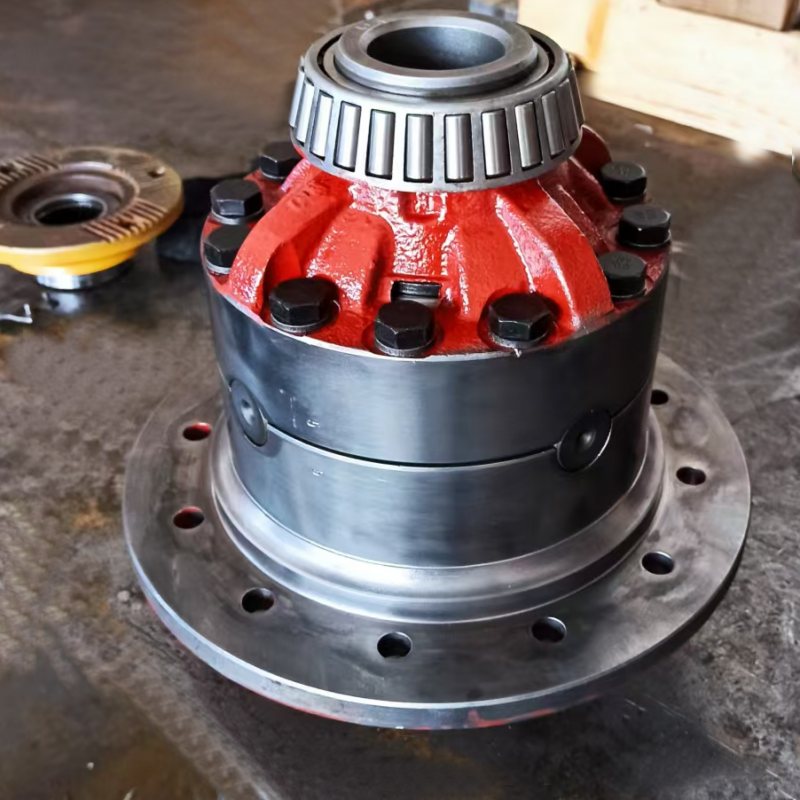

The differential assembly is a key component of the main reducer of the 5-ton wheel loader drive axle, suitable for the Lovol 5-ton axle and Jincheng axle. Its main function is to automatically adjust the speed difference between the left and right wheels when the vehicle turns, ensuring smooth driving and flexible steering, thereby improving the overall handling stability and safety of the vehicle.
Core structure composition
The differential assembly consists of the following key components, which work together to achieve power distribution and speed regulation:
Differential housing: Cast iron or high-strength alloy casting, as a whole load-bearing frame, directly connected to the driven gear of the main reducer, to withstand high torque impact.
Planetary gear set: usually consisting of four conical planetary gears, installed on a cross shaft, to achieve differential rotation between the left and right half shafts. It is the core mechanism for adjusting the wheel speed difference during turning.
Half shaft gears: one on each side, meshing with planetary gears, directly driving the wheels through the half shaft, transmitting power and bearing bending moments.
Cross shaft (planetary gear shaft): or cross shaped structure, fixing the planetary gears and ensuring their meshing accuracy. The material is treated with carburizing and quenching to improve wear resistance.
Planetary gear gasket (0.1-0.3mm thick): prevents axial movement and reduces friction loss;
Half shaft gear thrust washer: made of copper based alloy material, used to adjust the meshing clearance.
