Loader Planetary Carrier Assembly
1. Genuine Lovol 8-ton planetary carrier assembly, perfectly matching original equipment specifications.
2. Fabricated with high-performance alloy steel, excellent wear resistance and long-term durability.
3. Smooth power transmission, low operational noise, and superior structural reliability.
4. Direct factory supply, supporting personalized customization for specific working conditions.
5. Cost-effective solution with comprehensive quality control and after-sales support.
6. Ready stock in warehouse, ensuring fast delivery and efficient logistics service.
Loader Planetary Carrier Assembly
The Lovol 8-ton planetary gear carrier assembly is a robust, compact component designed for heavy thrust loads and high torque multiplication in demanding conditions. Its primary function is to support and manage the planet gears, forming a crucial part of the power transmission system in Lovol 8-ton class construction machinery.

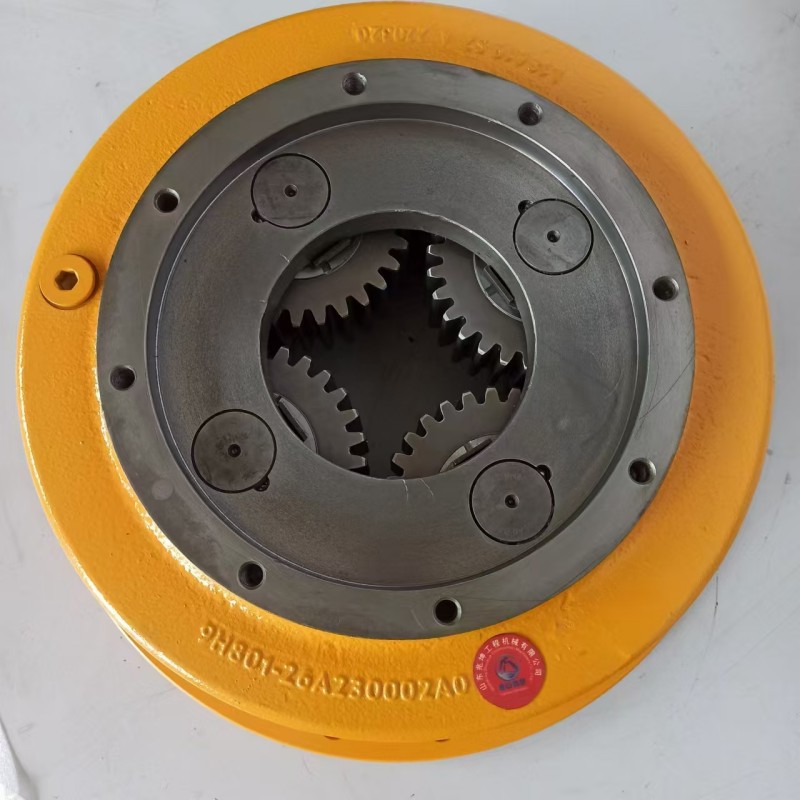

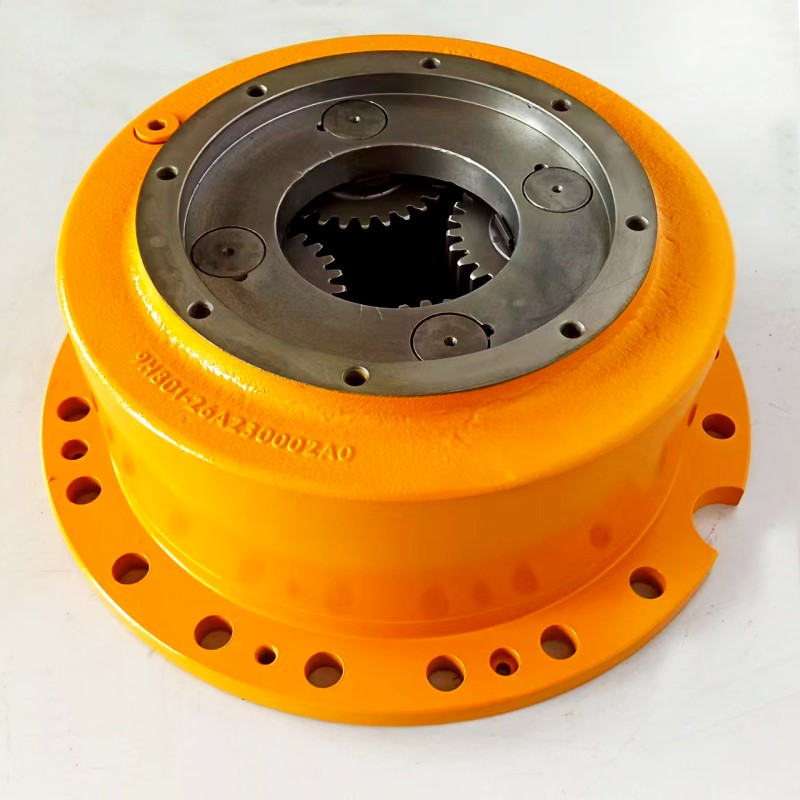

The planetary gear carrier assembly (code: 9H801-26A230002A0) forms the LOVOL drive axle together with components including the ring gear assembly, brake disc, wheel hub, brake caliper, main reducer assembly, half shaft, and axle housing.
Performance
High Torque Multiplication: The assembly is used to increase torque, providing the necessary working power for the machine's operations.
Efficient Speed Reduction: It functions as a speed reducer, effectively slowing down the motor speed while significantly boosting the output torque.
Enhanced Traction: The resulting superior torque at low speeds and strong adhesive force to the ground enables better hill-climbing and traction control, allowing operation on uneven or muddy terrain
Function

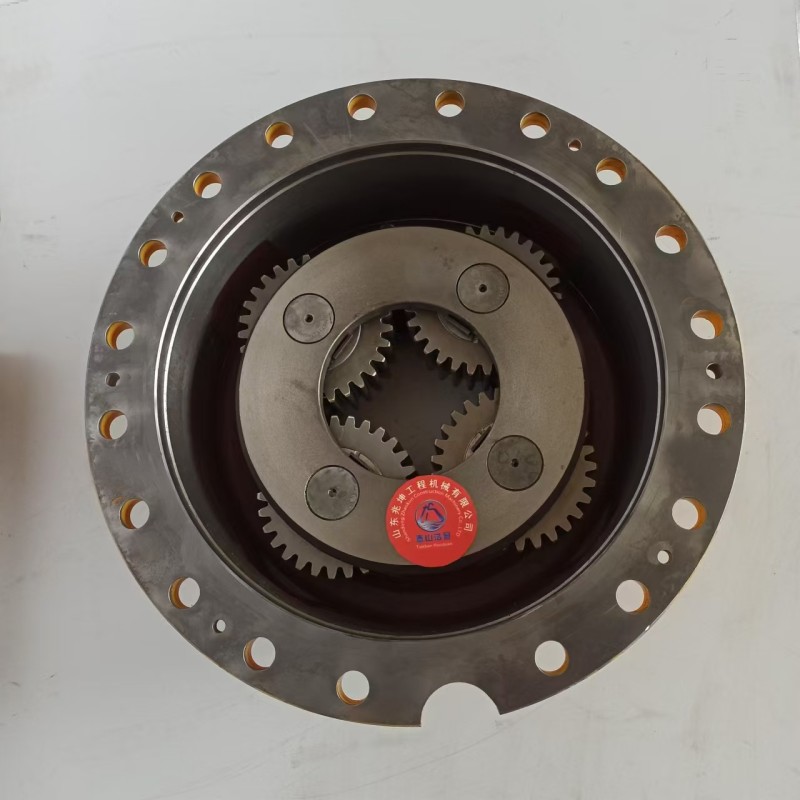

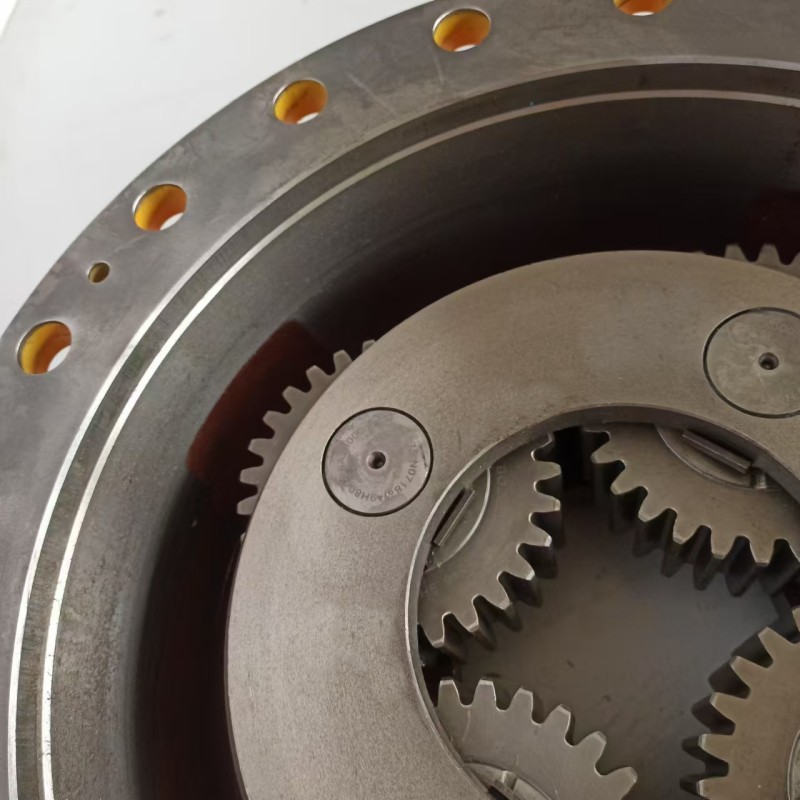

The core function of the planetary gear carrier assembly is to support the planet gears as they revolve around the central sun gear within the ring gear. This mechanism:
Transmits Power: It is a vital part of the driveline, transmitting power from the engine and transmission system to the wheels .
Provides Structural Support: Holding the planet gears in their relative positions and ensuring correct meshing of all gear components.
Enables Gear Ratios: By rotating itself , the carrier helps to achieve the necessary gear ratios for different speeds and power requirements, depending on which components are locked or rotating.
Application
The Lovol 8-ton planetary gear carrier assembly is specifically designed for Lovol's 8-ton construction and agricultural machinery wheel loader models.
Construction Engineering: Used for earth moving, land leveling, craning, and loading/unloading materials like sand, earth, and coal.
Material Handling: Essential in environments such as mines, factories, railway stations, wharves, and freight yards for lifting and moving heavy loads.
Heavy-duty Mobility: It is integral to the final drive of the machinery, enabling mobility and stable operation in rugged and challenging ground conditions.
Service Capability
As a service provider specializing in the field of wheel loader components, we have full chain service capabilities and can quickly respond to the selection and adaptation needs of brand drive axle components such as Lovol, XCMG, SEM, SDLG, etc; Mid end has a professional technical team that provides technical support such as component disassembly, working condition analysis, and customized replacement solutions; Backend supporting warehousing logistics and after-sales follow-up to ensure delivery timeliness and operation and maintenance services.
We take "precise matching+technological empowerment+full cycle response" as the core, serving loader manufacturing and maintenance enterprises, and can efficiently solve the supply and technical coordination problems of complex transmission system components, helping customers reduce costs and improve efficiency.
