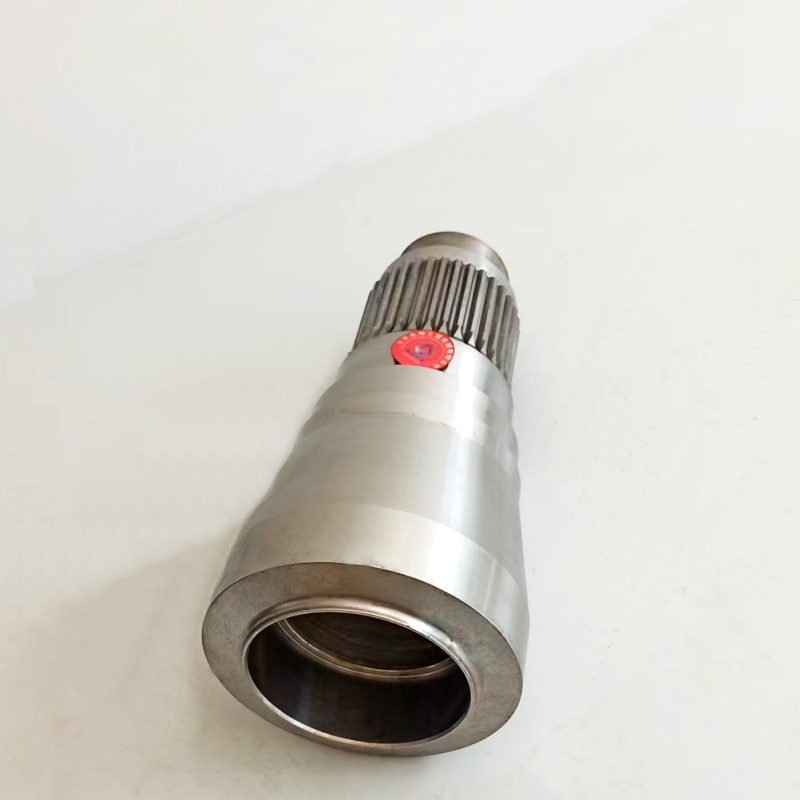

Half Shaft Tubes For Loader
1. Original-matching quality sleeve, perfect fit for loader drive axle systems.
2. Excellent wear & corrosion resistance, extending service life significantly.
3. Precise machining, stable rotation, low vibration, strong load-bearing capacity.
4. Factory direct supply, support custom dimensions for specific loader models.
5. Cost-effective pricing with strict quality inspection before delivery.
6. Sufficient stock, fast logistics arrangement, timely delivery guaranteed.
The main function of the half shaft sleeve of the loader transmission shaft
The half shaft tube of the loader drive shaft is a key component used in the SEM 28 drive shaft assembly compatible with 5-ton wheel loaders. Its main functions include fixing the axial position of the driving wheels, transmitting road reaction forces, and supporting the frame mass.
External parameters and structural characteristics of the end shaft, as well as components of the drive shaft assembly
The end shaft has 36 splines, with a total height of 363mm, an outer diameter of 84.6mm at the pipe mouth, and a bottom outer diameter of 174.5mm. It is a separately manufactured tubular component. The drive axle assembly consists of a sleeve, half shaft, wheel reducer assembly, brake caliper, main reducer assembly, and axle housing.
The three main functions of the bridge end shaft
1. High bearing capacity: Made of high-strength alloy steel, it can withstand the torque and impact load under heavy load conditions of the loader.
2. Wear resistant/corrosion-resistant: The surface has been strengthened to adapt to harsh working environments.
3. High precision stability: Strict machining tolerances ensure compatibility with the half shaft and axle housing, low vibration during operation, and no looseness.
Accurate sorting and delivery, professional after-sales support
There are various types of drive axle end shafts in the company warehouse, suitable for different wheel loader models. The staff accurately matches the half shaft sleeve according to the order code, and after verification, assembles or carefully packages the accessories for shipment. After sales of the product, the company provides technical support to ensure that customers are proficient in installing and using accessories·
