Loader Main And Driven Spiral Bevel Gears

1. Original quality parts, host supporting products.

2. Adopting high quality steel, wear-resisting and anti-manufacturing, prolonging the use of time.

3. Smooth running, low noise, high reliability.

4. Factory shop, support processing customization.

5. Affordable price, quality assurance.

6. Factory storage, delivery, transport, convenient and quick.

Contact Now E-Mail Telephone WhatsApp

Product Details

Loader Main and Driven Spiral Bevel Gears

The gear pair is an important component of the SEM drive axle main reducer assembly of the construction machinery wheel loader, consisting of SEM28 front axle main and driven 8/37 tooth spiral bevel gears.

The structure of a spiral bevel gear pair mainly includes two parts: the crown small gear structure is a bevel gear with 8 teeth and a spiral tooth profile. The crown gear structure is a spiral bevel gear with 37 teeth. Secure it firmly to the differential housing with bolts.

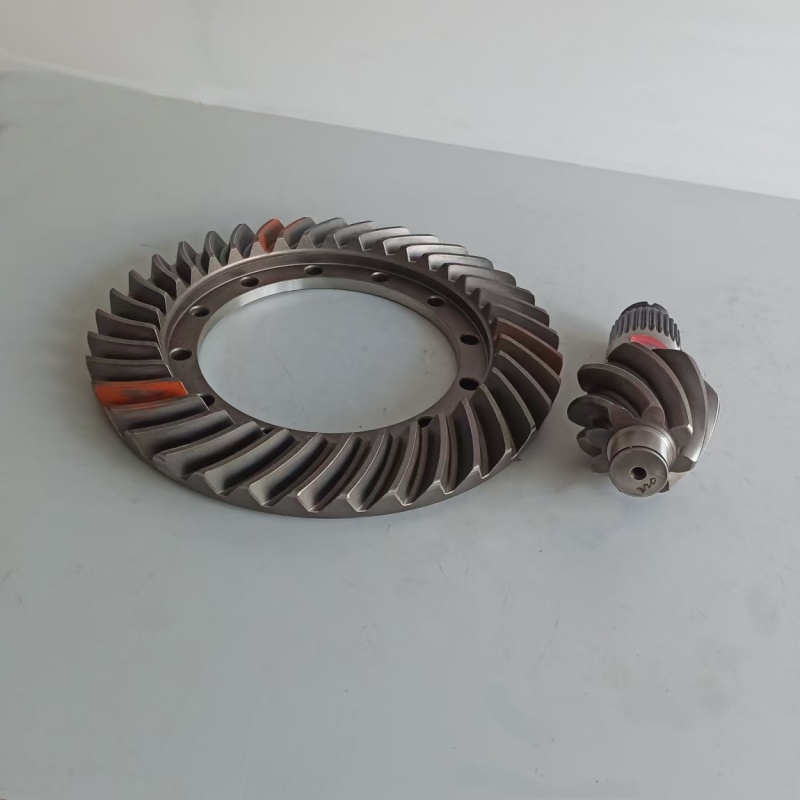

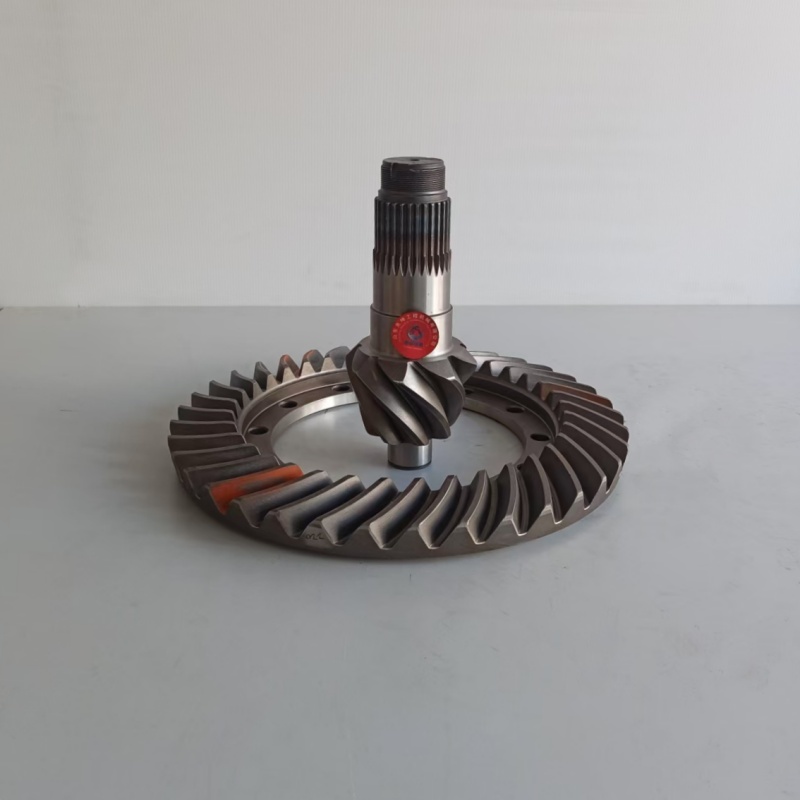

SEM Front Main and Driven Spiral Bevel Gears

Product Advantages:

1. SEM gear pairs have more teeth in mesh (higher overlap coefficient), resulting in smoother transmission and significantly reduced noise and vibration.

2. The contact area of the tooth surface is relatively large, and the inclination of the tooth line helps to distribute the load, which can withstand higher torque and impact loads (very suitable for harsh working conditions of loaders).

3. Due to the stable performance and reliable quality of gear pairs, loaders are often used in environmental work such as engineering construction and mining.

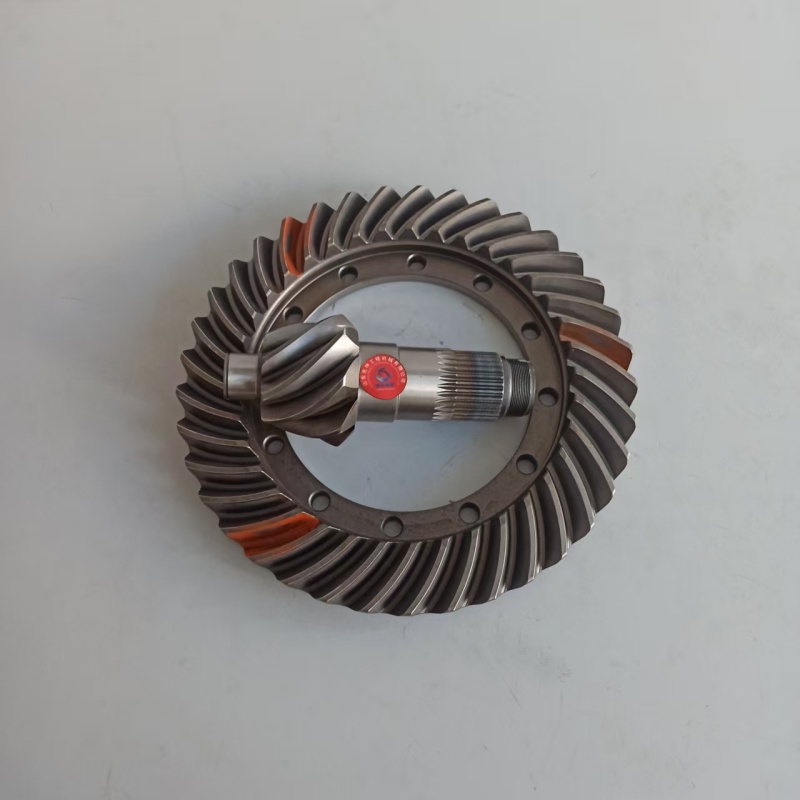

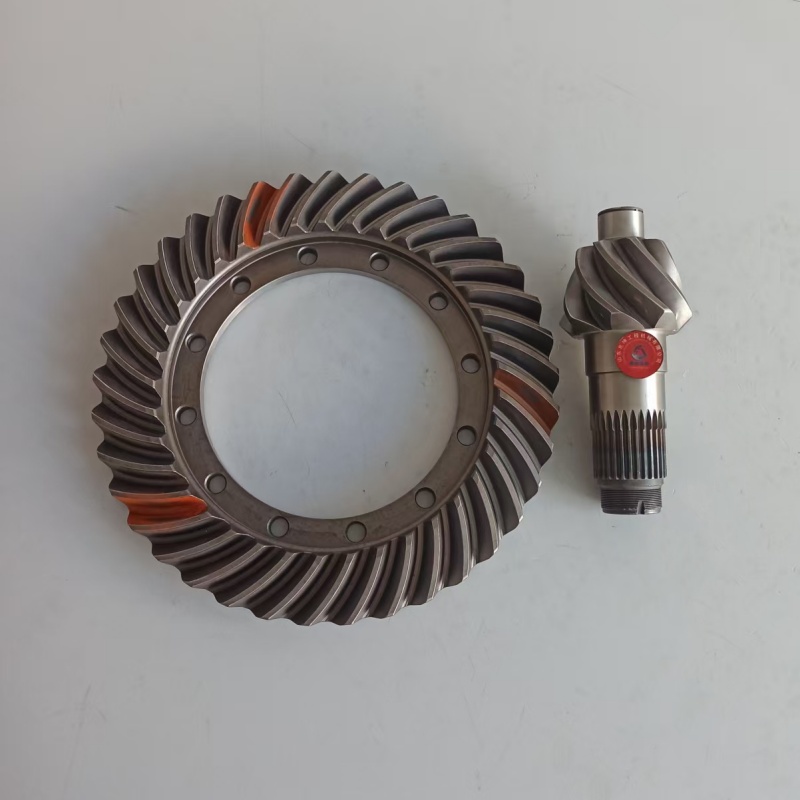

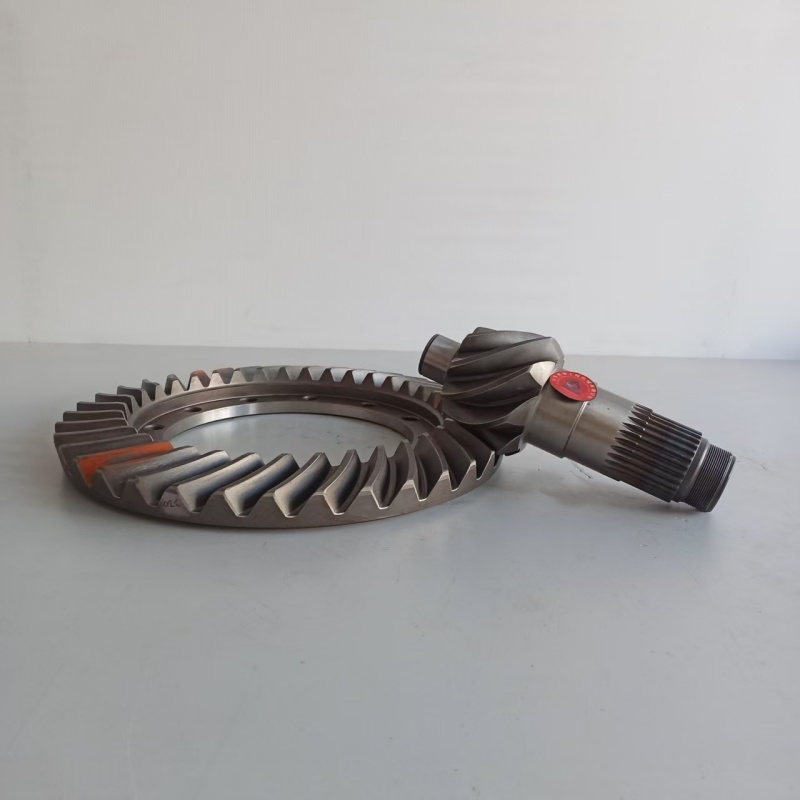

SEM Front Main and Driven Spiral Bevel Gears
