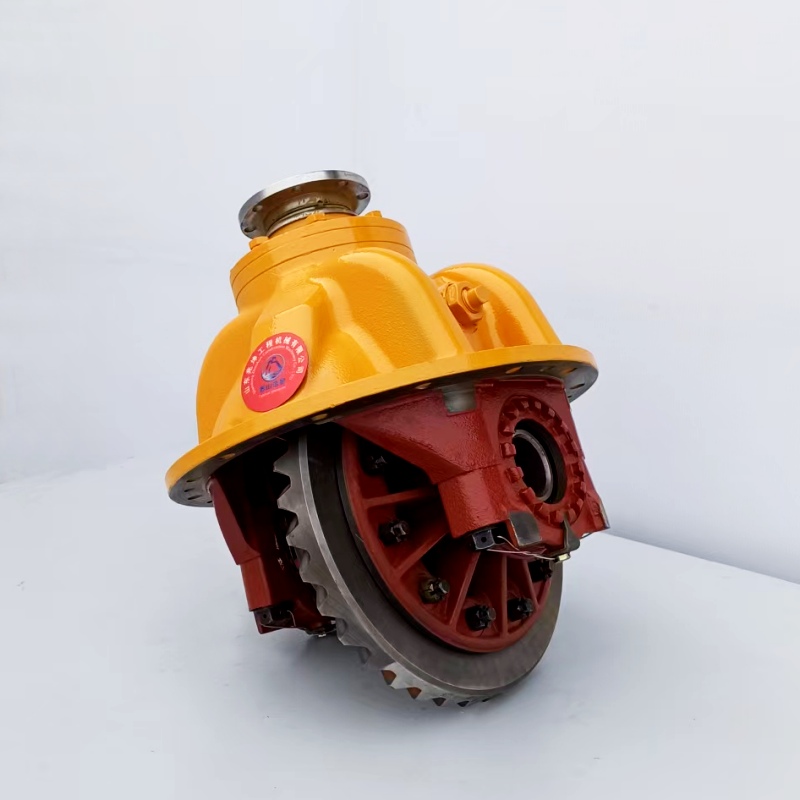

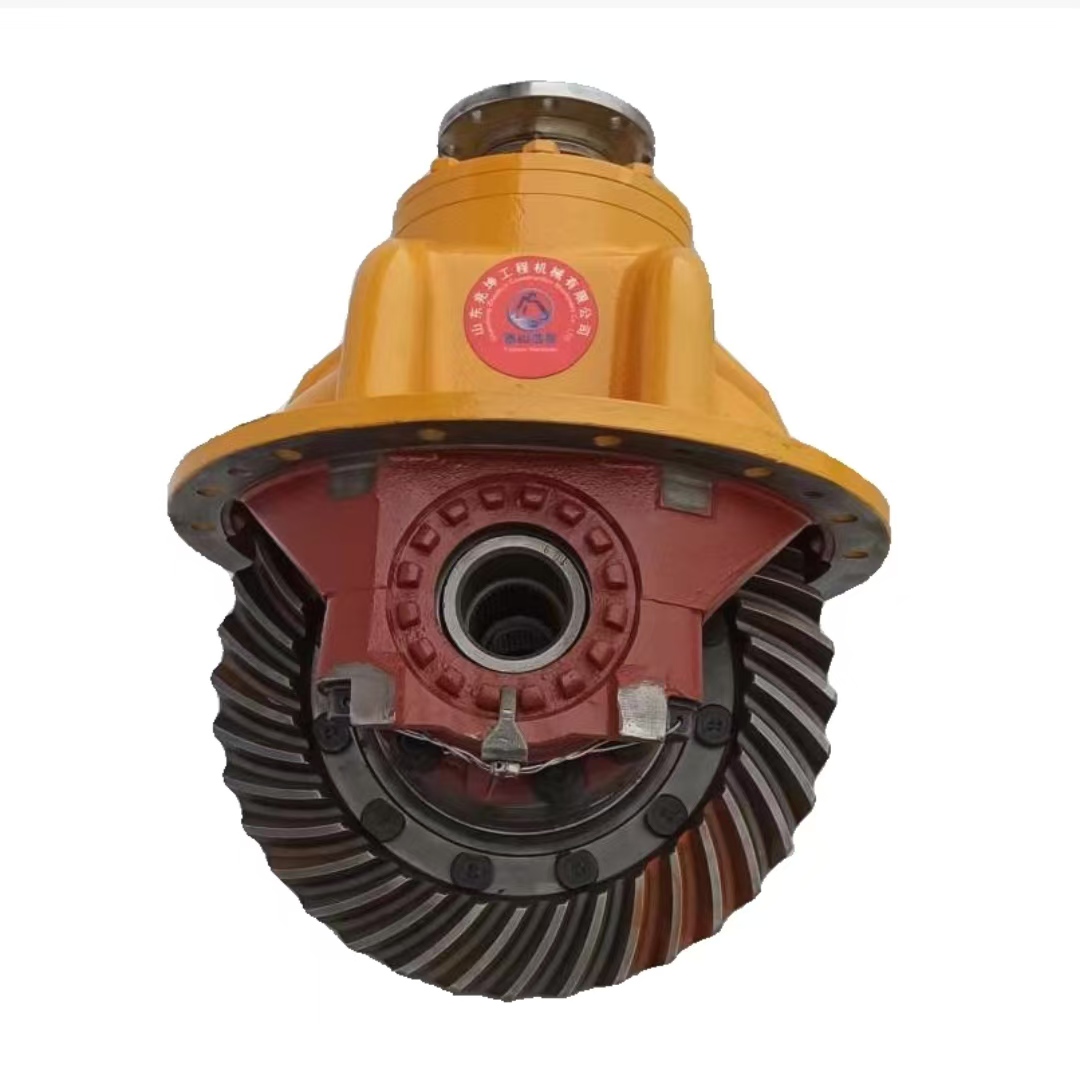

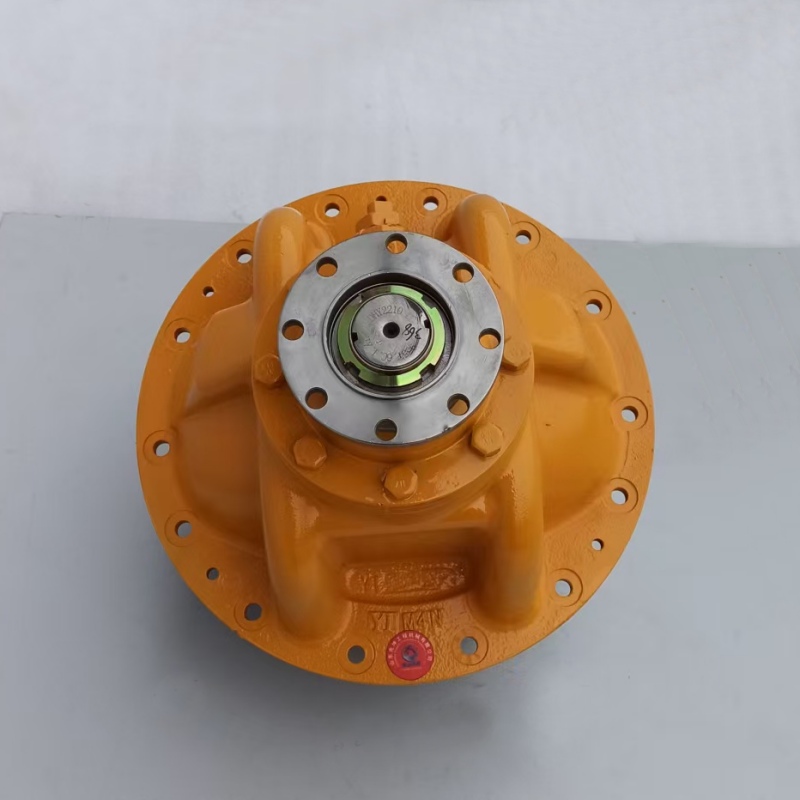

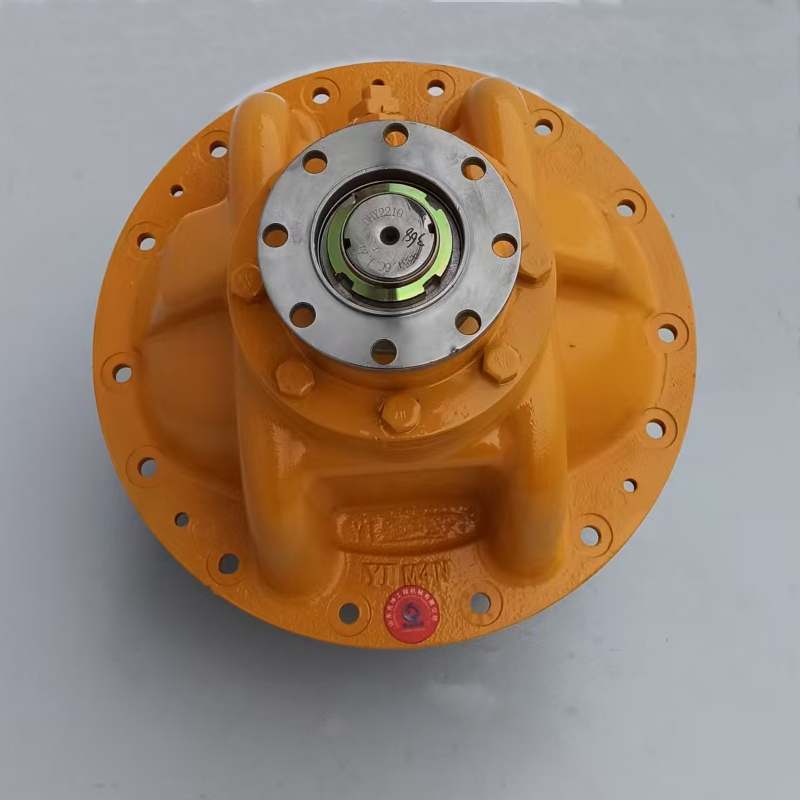

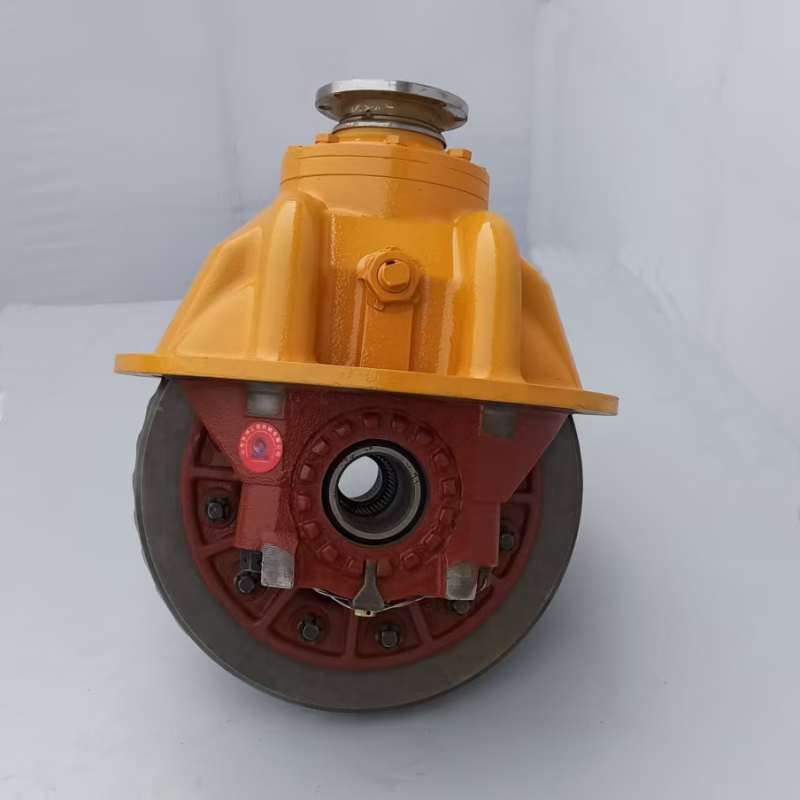

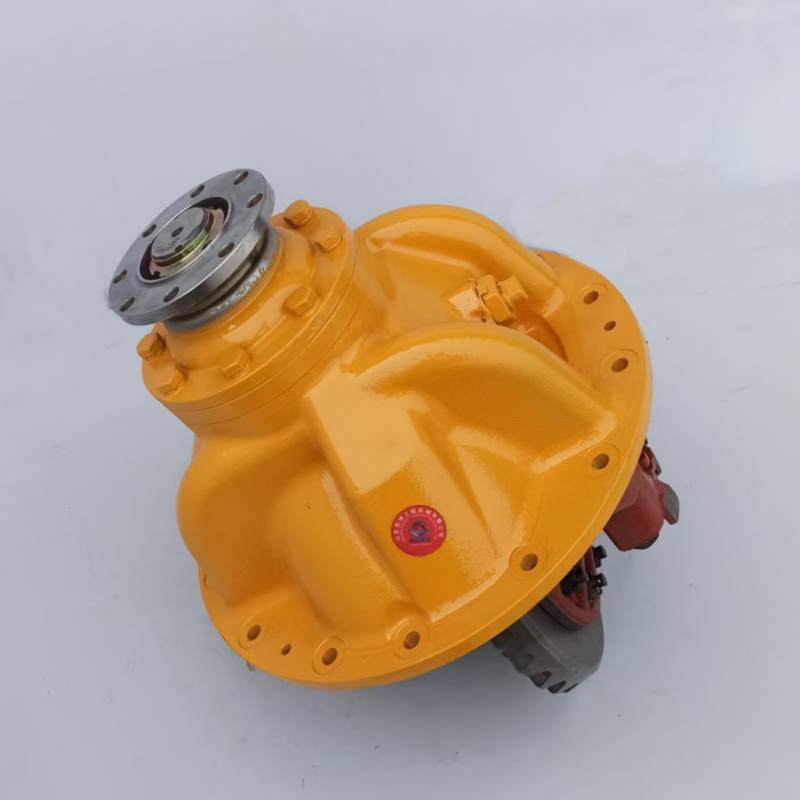

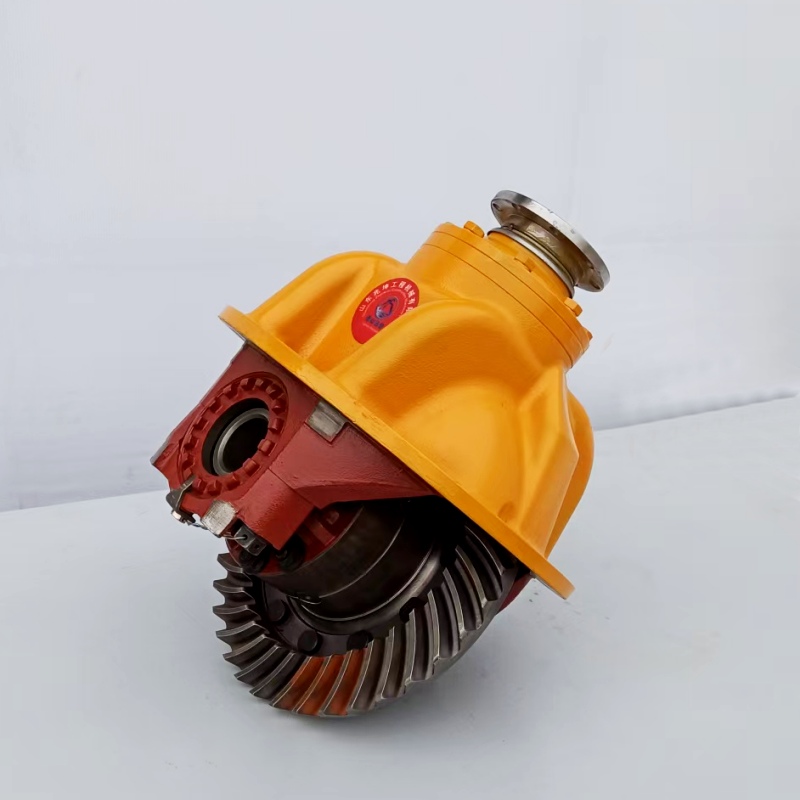

Main Reduction Assembly 5-Ton
1. OEM grade accessories, built according to the host matching standards, with high dimensional accuracy, can be seamlessly assembled and adapted to the entire machine.
2. Select high-quality steel for forging and processing, with outstanding impact resistance and wear resistance, able to withstand heavy load conditions, and effectively extend the service life of components.
3. The gear meshing is smooth, the whole machine runs stably, the operating noise is low, and the long-term operation reliability is stronger.
4. Our own production and processing workshop has mature processing capabilities and supports customized production services as needed.
5. Direct supply from the source factory, outstanding cost-effectiveness, full process quality inspection and control, and improved quality assurance system.
6. The factory has sufficient stock of spot goods and a mature logistics system to ensure efficient and timely delivery of goods.
Main Reduction Assembly 5-Ton
The main reducer assembly is the core component of the loader transmission system, mainly used to reduce the speed of the transmission shaft, increase the output torque, and change the direction of power transmission to meet the heavy load operation requirements of a 5-ton loader, ensuring efficient power output of the entire machine.
The code for the main reducer assembly is 02.01.01F.01S. Mainly composed of ZL50 main reducer housing, differential assembly, 8/37 bevel gear pair, bearings, bearing seat, sealing cover, sealing ring, etc. Suitable for front drive axles of loaders from brands such as ENSIGN, LOVOL, DOUSAN, SHANTUI, etc.
Three major characteristics of the main reducer of a wheel loader
1. Selected alloy material, strengthened by heat treatment process, with excellent fatigue resistance and corrosion resistance;
2. Integrated die-casting shell design, strong rigidity, high-precision gear pair using carburizing and quenching technology, smooth meshing without impact;
3. Sealed protection, effectively resisting the invasion of sediment and water stains, suitable for harsh working conditions.
The core function of the main reducer
As the core hub of power transmission, it realizes the deceleration, torque increase, and direction conversion of engine power, providing strong traction for loaders;
Optimize the power distribution ratio to ensure torque balance between the front and rear axles, and improve the overall driving stability of the vehicle;
Reduce the load on the gearbox, minimize the wear of the transmission system, and extend the service life of the entire machine;
Accurately control the power output rate to meet the speed and torque requirements in different operating scenarios.
The operational performance and application scenarios of the main reducer of the Lovol 5-ton wheel loader
widely used in mine stripping, building demolition, port bulk cargo loading and unloading, municipal engineering, large-scale agricultural operations and other fields; suitable for high-intensity and high-frequency operating scenarios such as material transfer in gravel yards, earthwork operations in infrastructure construction sites, granary loading and unloading, and road snow removal.
