8-Ton Gear Pair Loader Part
1. Genuine original accessories, perfectly compatible with the main engine of Lovol 8-ton rear drive axle with an excellent fit.
2. Selected high-strength alloy steel for forging, featuring outstanding wear and impact resistance, which greatly extends the service life of the components.
3. Precisely machined meshing tooth surfaces ensure smooth operation without abnormal noise, providing dual guarantees for transmission stability and reliability.
4. Direct sales from the source factory, offering personalized custom processing services according to working condition requirements.
5. Cost-effective pricing with quality control in line with original factory inspection standards, ensuring worry-free quality.
6. Sufficient inventory in self-owned warehouses, with national logistics line distribution for fast delivery and stable arrival.
8-Ton Gear Pair Loader Part
The main transmission gear pair in a Lovol 8-ton rear drive axle typically consists, torque increase and change in power transmission direction. The axle assembly itself is designed for high reliability, durability, and robust performance in demanding conditions.

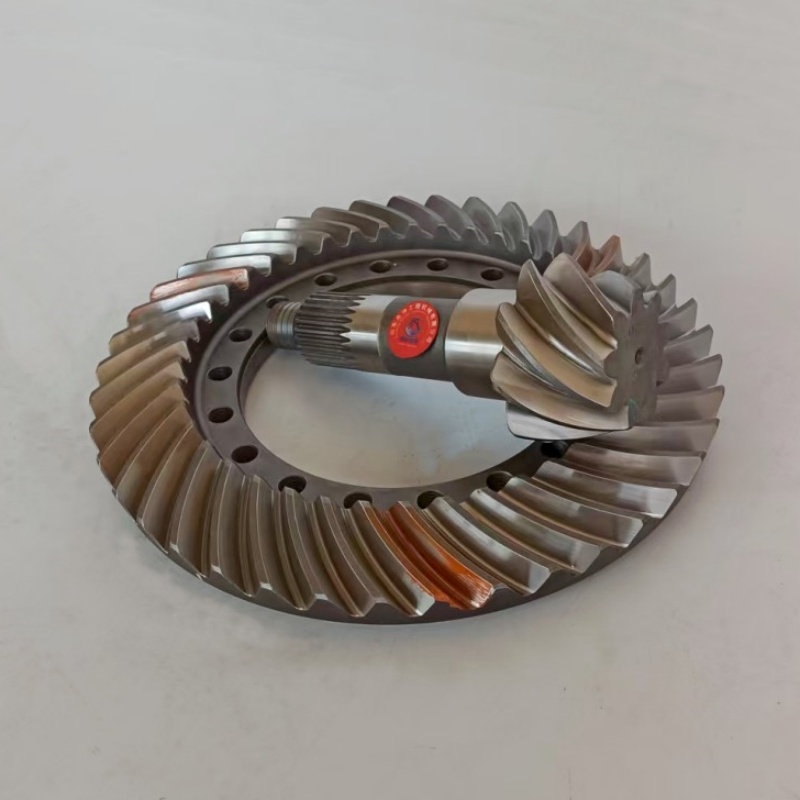

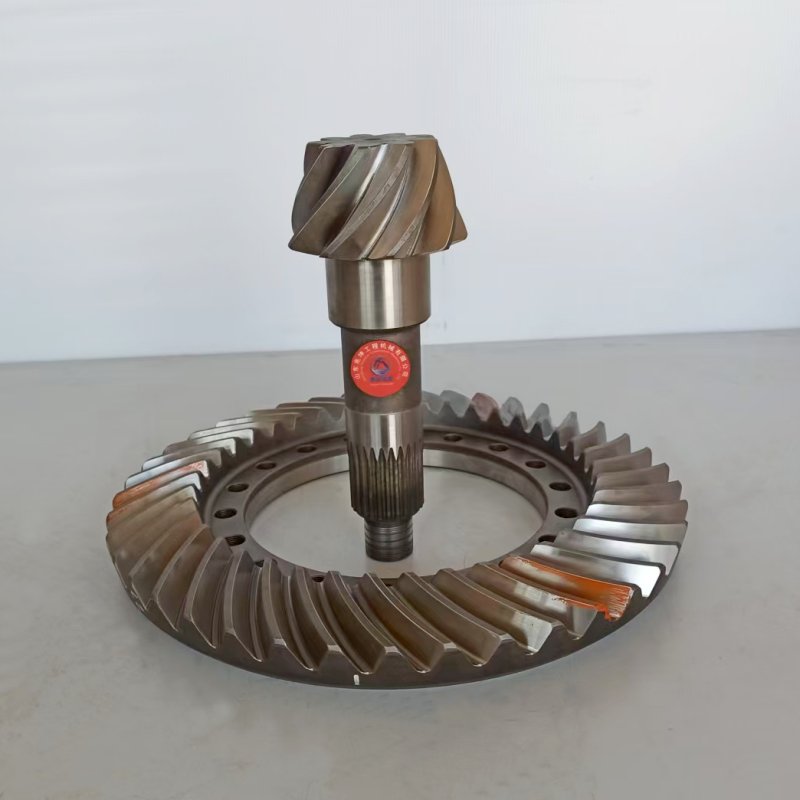

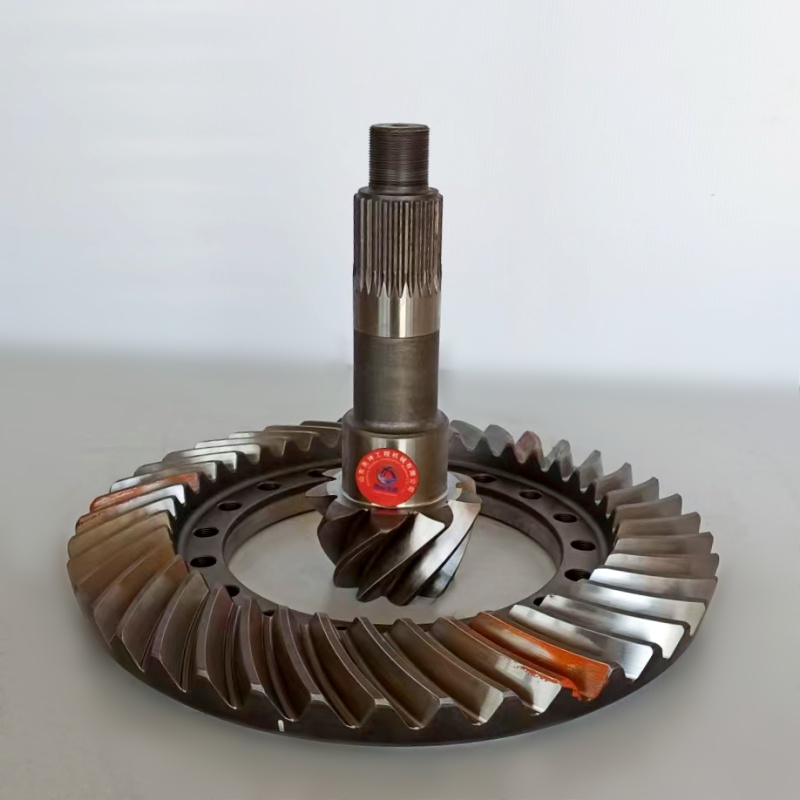

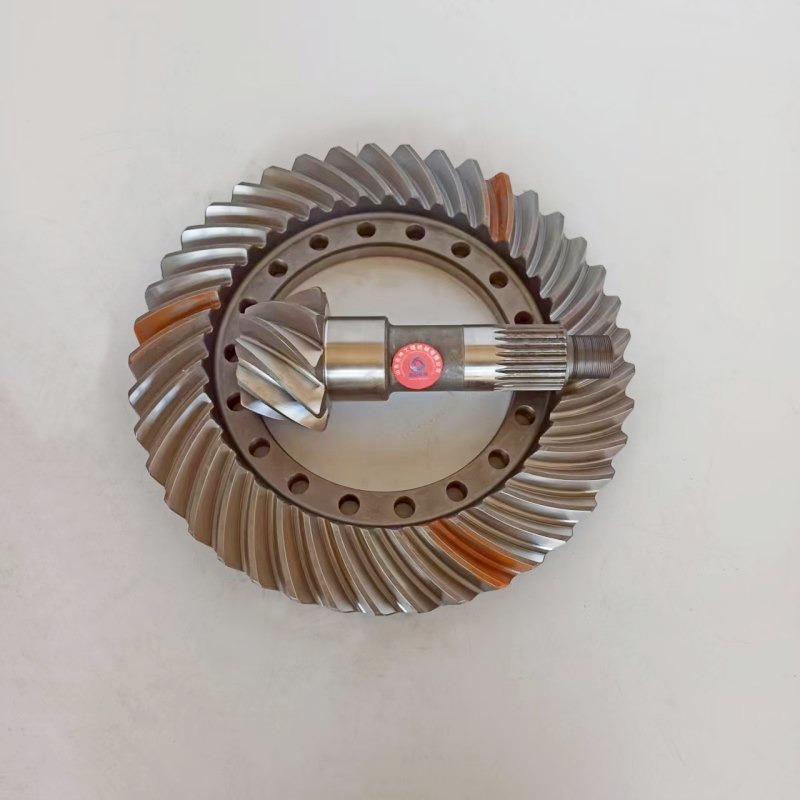

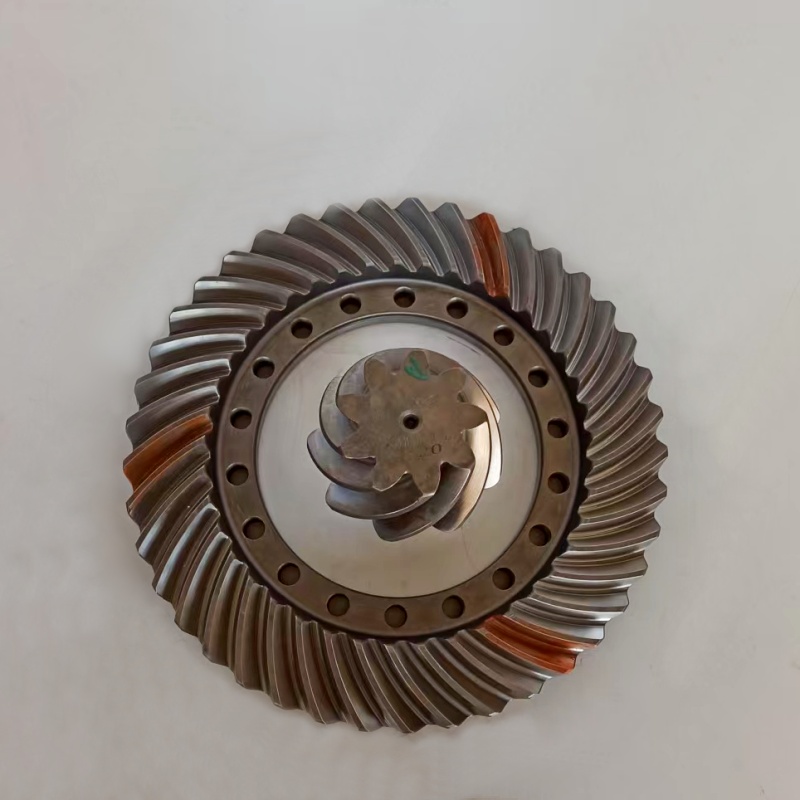

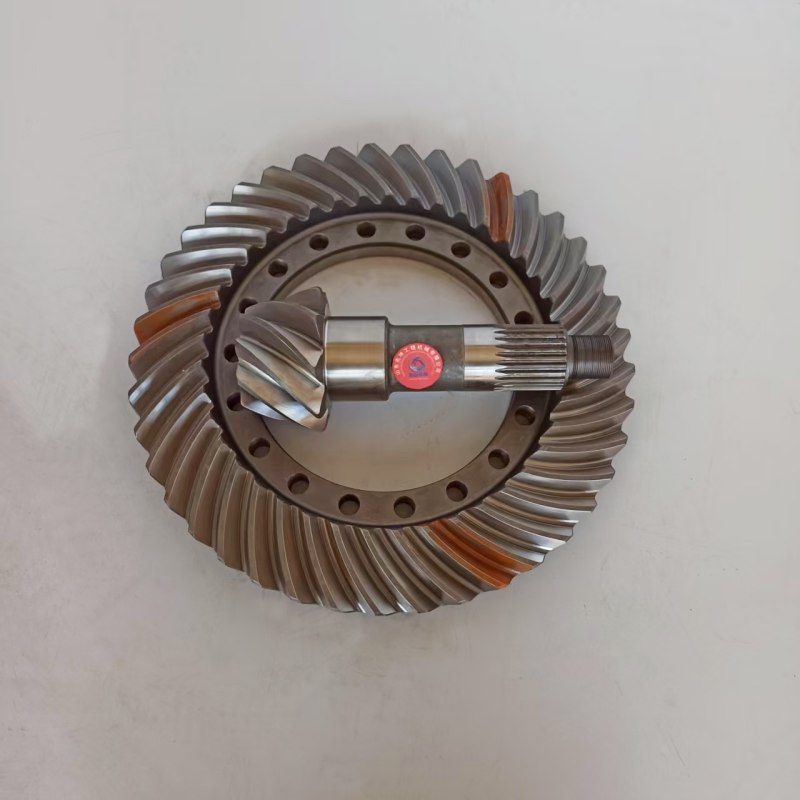

The gear pair is a component of the main reducer assembly of the 8-ton Lovol drive axle of a wheel loader, which is divided into crown gears and crown wheels, coded as 9H801-27A222000A1, 9/41 teeth, and 26 keys.
Gear pairs can change the direction of power transmission, transmit torque, and improve transmission efficiency. Spiral bevel gears have smooth meshing and low noise during operation, improving the smoothness and reliability of equipment operation. Spiral bevel gears have high load-bearing capacity and can cope with various complex and harsh working environments, ensuring the normal operation of loaders.
Performance
High Bearing Capacity: The central transmission gears are designed to have a higher bearing capacity than general transmission gears due to the heavy loads they manage.
Efficiency and Reliability: Spiral bevel gears offer high efficiency and low servicing requirements.
Quiet Operation: The design minimizes noise and vibration during operation.
Durability: The reinforced design of the main reducer and wheel hubs increases their operational lifespan.
Function
The primary functions of the main transmission gear pair are:
Torque Transmission and Direction Change: The gears transmit power from the drive shaft to the differential and then to the axle shafts and wheels, changing the direction of torque transmission by 90 degrees.
Speed Reduction and Torque Multiplication: They provide the necessary gear reduction to multiply the engine torque, which allows the vehicle to move and handle heavy loads. This is a core functional component for mechanical linkage and power delivery.
Support: The rear axle housing supports a significant portion of the vehicle's weight and often houses the differential, final drives , and braking mechanisms.
Application
The main transmission gear pair of the Lovol 8-ton rear drive axle is designed specifically for heavy-duty applications of Lovol machinery. Lovol wheel loaders are used for heavy-duty loading and transportation in large coal mines, iron mines, and earthwork projects. The handling, loading and unloading, and heavy transportation operations of agricultural materials. The sturdy design is suitable for operating in rugged, uneven, or slippery terrain, utilizing features such as differential locks to enhance traction and stability.
Product Maintenance
During normal operation of the loader, according to product maintenance requirements, regular inspections should be conducted to check for any abnormal conditions such as cracks, wear, and deformation, and to promptly identify and address potential issues. Monitor the meshing of gears, observe the sound and vibration during operation, check the contact points on the tooth surface to determine if the meshing is normal. Replace the lubricating oil according to the prescribed cycle, regularly check the oil level, ensure good lubrication, and ensure the normal operation of the loader.
