Loader Parts Spiral Bevel Gear
1. Genuine original accessories, perfectly compatible with the main engine of Lovol 7-ton rear drive axle with an excellent fit.
2. Selected high-strength alloy steel for forging, featuring outstanding wear and impact resistance, which greatly extends the service life of the components.
3. Precisely machined meshing tooth surfaces ensure smooth operation without abnormal noise, providing dual guarantees for transmission stability and reliability.
4. Direct sales from the source factory, offering personalized custom processing services according to working condition requirements of 7-ton equipment.
5. Cost-effective pricing with quality control in line with original factory inspection standards, ensuring worry-free quality for 7-ton rear drive axle applications.
6. Sufficient inventory in self-owned warehouses, with national logistics line distribution for fast delivery and stable arrival to meet the demand of 7-ton Lovol equipment maintenance and replacement.
Loader Parts Spiral Bevel Gear
The main transmission gear pair in a Lovol 7-ton wheel loader is typically a spiral bevel gear set, functioning as the main reducer assembly within the drive axle to transmit power, reduce speed, and increase torque.
Component

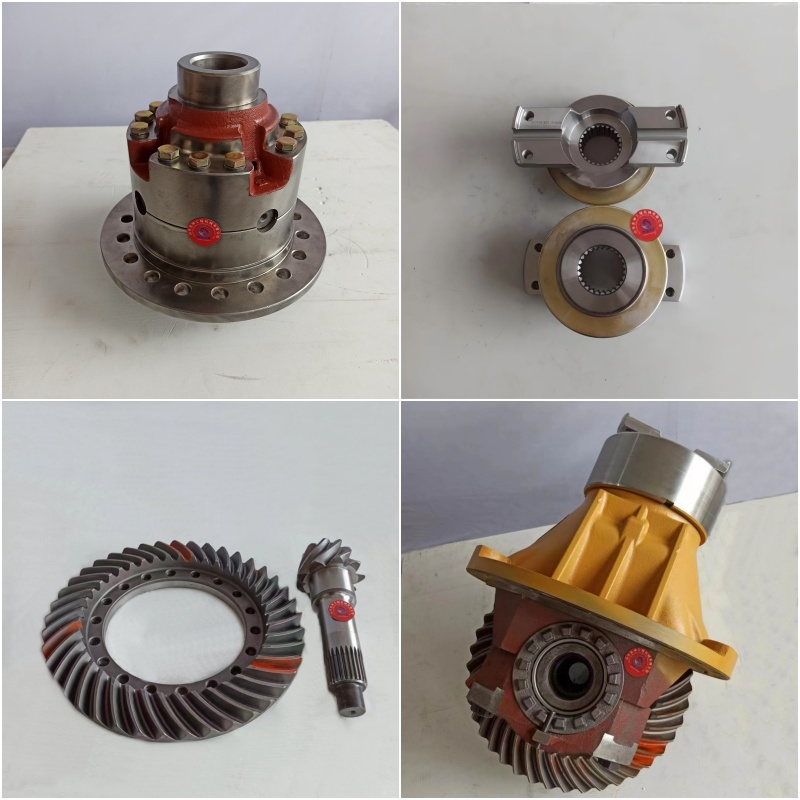

The master and slave gear pairs, differential, flange components, bearings, and main reducer housing form the main reducer assembly, which is used for the Lovol drive rear axle of a 7-ton wheel loader in construction machinery. The model is FL968/FL970/FL975 loader. The gear pair consists of crown gears with 9:41 teeth and 26 keys, with an inner diameter of 230mm and an outer diameter of 415mm.

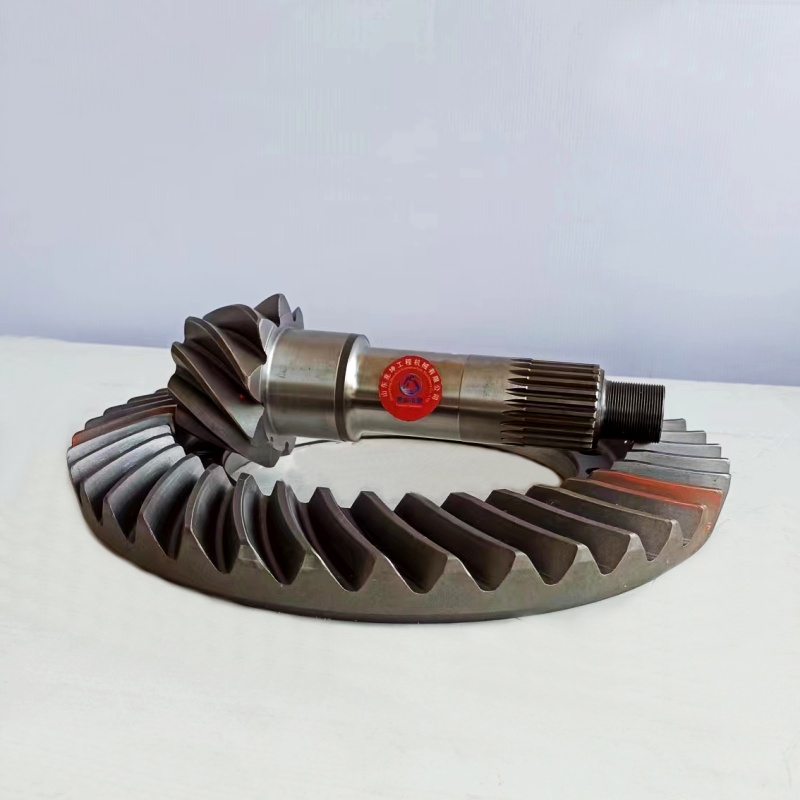

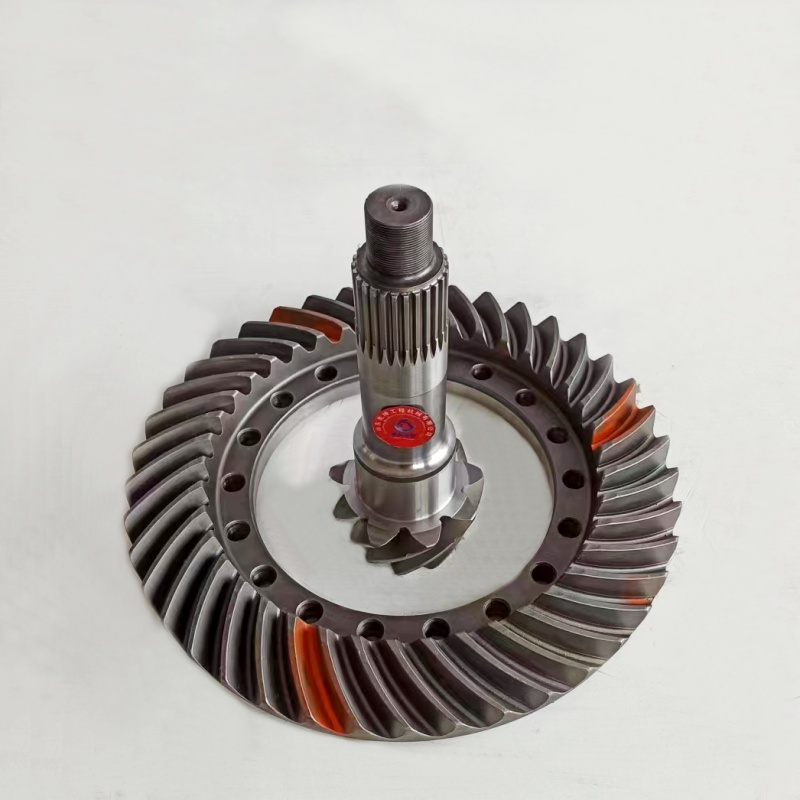

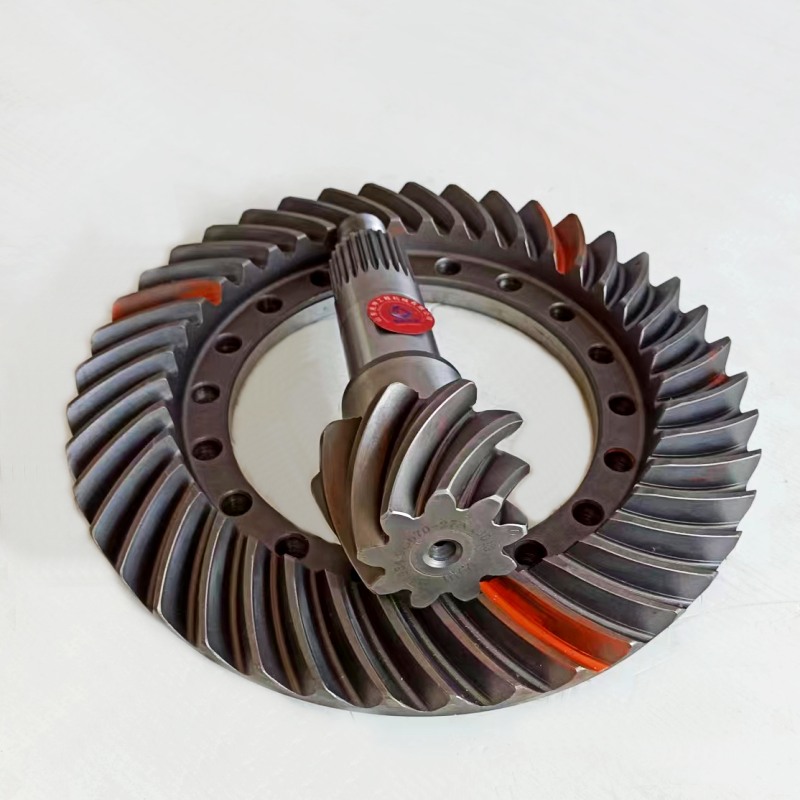

The crown wheel is fixed to the differential assembly, while the crown pinion is installed inside the main reducer. The crown pinion gear drives the crown wheel gear to operate and achieve deceleration. During the operation of the loader, this device can reduce the speed, increase the torque, and improve the work efficiency. It has strong load-bearing capacity, ensuring the reliability and stability of the loader in harsh working conditions.
Performance
1.High Efficiency: The design of the spiral bevel gears and the overall transmission system contributes to efficient power transfer from the engine to the wheels.
2.Torque Multiplication: It effectively increases the torque delivered to the wheels, which is essential for heavy-duty material handling and excavating tasks.
3.Reliability:The gear engagement is designed for minimal noise and smooth power transmission. ensures a high safety factor and reliable performance in tough operating environments.
Function
The primary functions of the main transmission gear pair are:
1.Power Transmission: Transmitting rotational power from the transmission/driveshaft to the differential and then to the wheels.
2.Speed Reduction: Reducing the rotational speed from the driveshaft before it reaches the wheels.
3.Torque Increase: Concurrently increasing the torque to provide the necessary force for moving heavy loads and navigating difficult terrain.
4.Directional Change: Changing the direction of power flow by 90 degrees to drive the axle shafts.
Application
The main transmission gear pair is a critical component of the final drive transmission system in the 7-ton Lovol bridge loader, which is widely applied in various heavy-duty material handling and construction scenarios, including:
1.Construction Sites: For general earthmoving and material handling.
2.Mining: Handling heavy raw materials in demanding environments.
3.Infrastructure Development: Used in projects requiring robust loading and transport capabilities.
4.Waste Management: Efficiently moving and managing bulk waste materials.
Product Packaging And Transportation
Our company maintains a professional and responsible attitude. After the product production and testing are completed, professional personnel select suitable packaging materials for the product according to the order requirements. When packaging, strictly control the size to ensure that the goods are stable and not shaken inside the box. Clearly indicate the recipient's information, the contents of the goods, and precautions on the packaging to avoid omissions. Carefully packaged goods enter the transportation process quickly and orderly, and begin to be shipped to customers.
