5-Ton XCMG Main Reduction Flange
1. Original high-quality accessories, special main reducer assembly flange for the host factory
2. Choose high-strength and high-quality steel, which is wear-resistant and impact resistant, and can extend its service life.
3. Stable structure, smooth operation, low vibration noise, and high connection fit.
4. Produced by the source factory, supporting processing based on drawings and non-standard customization.
5. Factory direct supply, saving the middle price, the most affordable price, while ensuring reliable product quality.
6. The factory has sufficient stock, one-stop warehousing, distribution, and logistics services, and efficient and fast delivery.
5-ton XCMG main reducer flange structure composition
A flange is usually composed of a flange face and a journal, and its specific structural features are as follows:

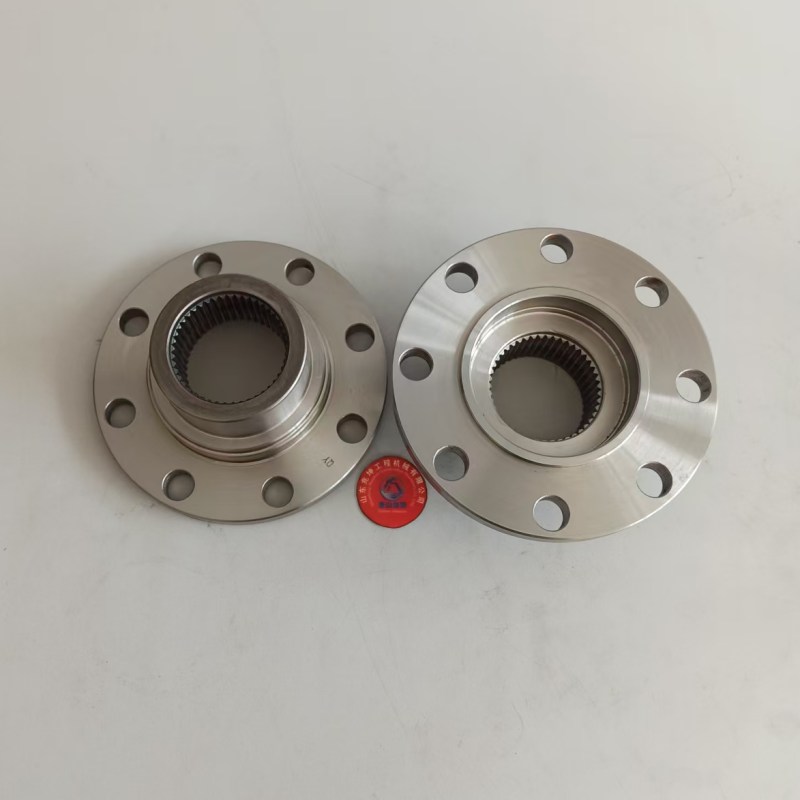

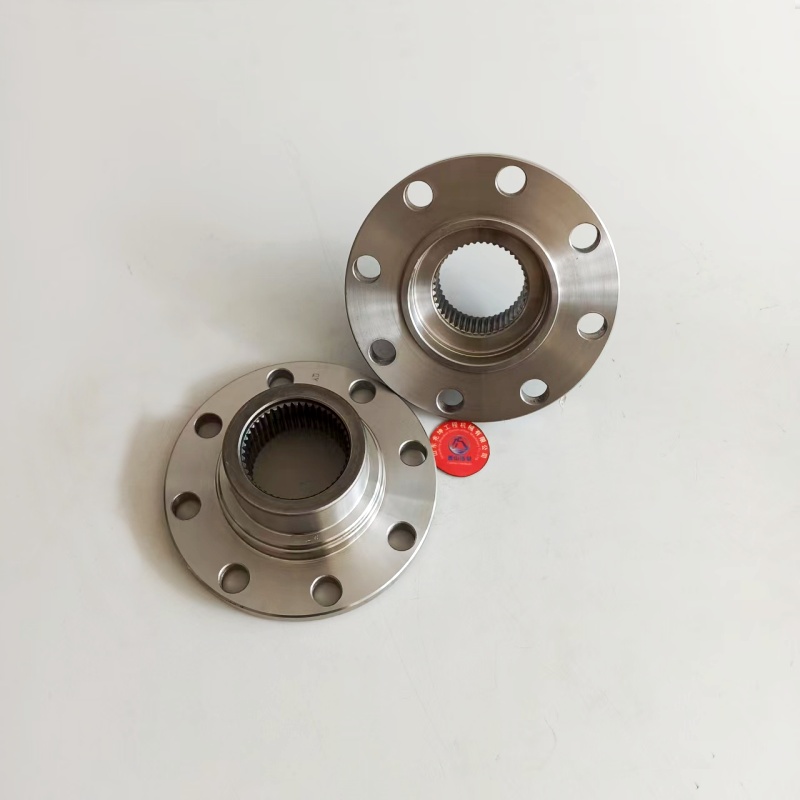

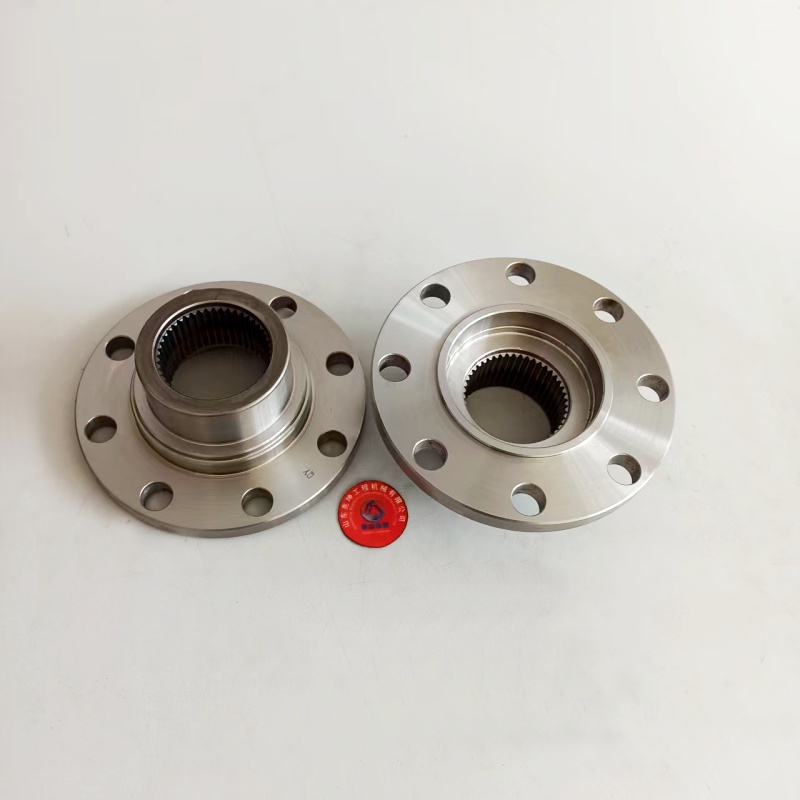

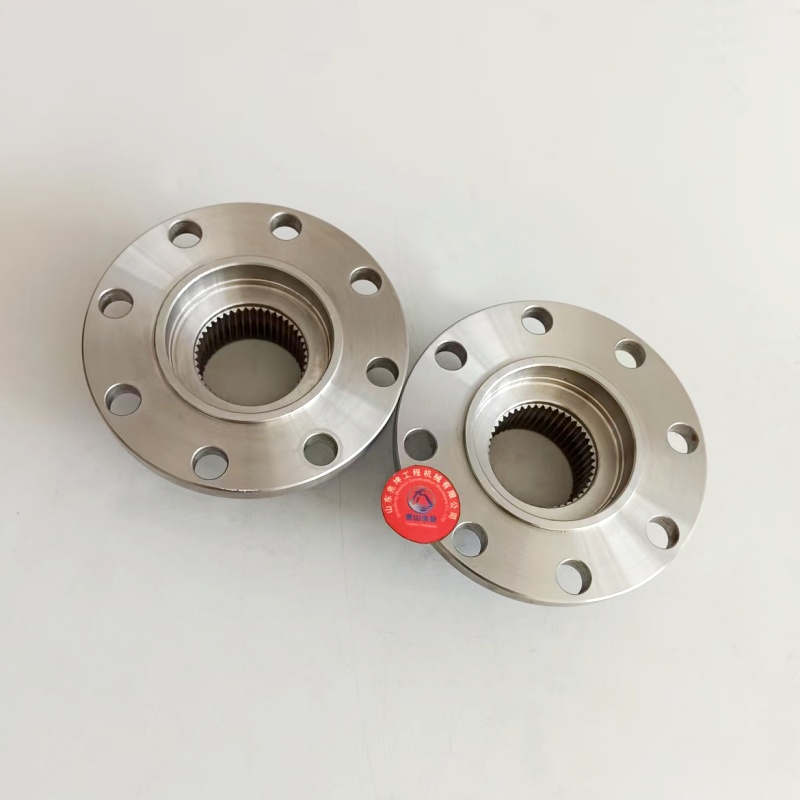

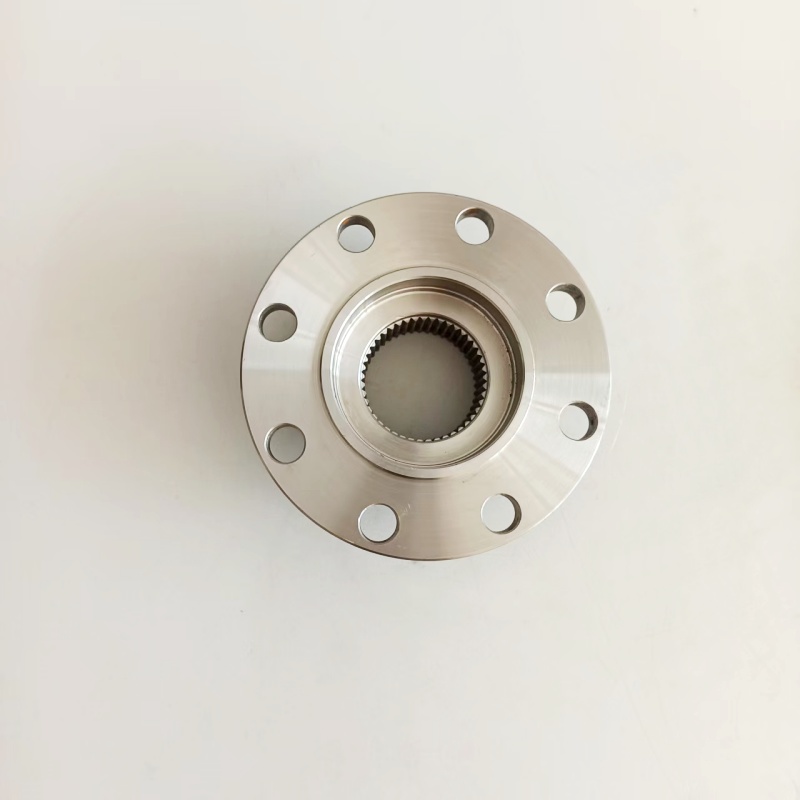

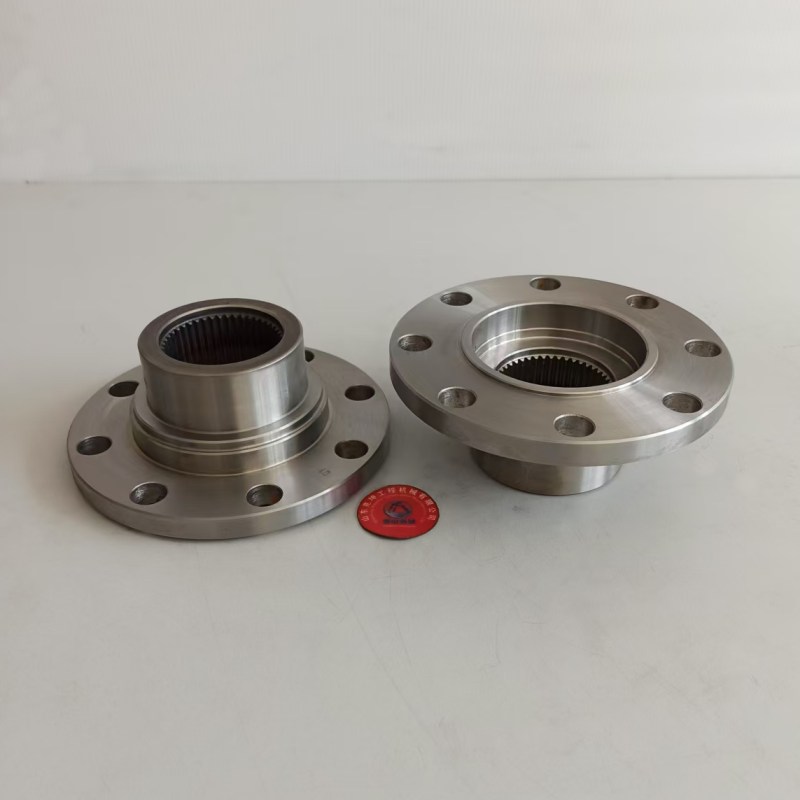

1. Connection interface: There are 8 bolt holes on the panel for connecting through the transmission shaft fork; There are 41 internal splines machined inside the shaft neck, which mesh with the external splines at the end of the transmission gear shaft to transmit torque.
2. Tightening and anti loosening: There is a threaded hole in the center of the shaft neck, which is locked with a large nut; Some designs have radial through holes in the neck, allowing fasteners to be inserted and pressed onto the splines to prevent loosening, making them more reliable than traditional "stamping" methods.
3. Shape and Material: Depending on the model, there are circular flanges and flange types, usually made of castings (such as QT700) or forged steel, balancing strength and reducing diameter.
The function of XCMG 5-ton main reduction flange

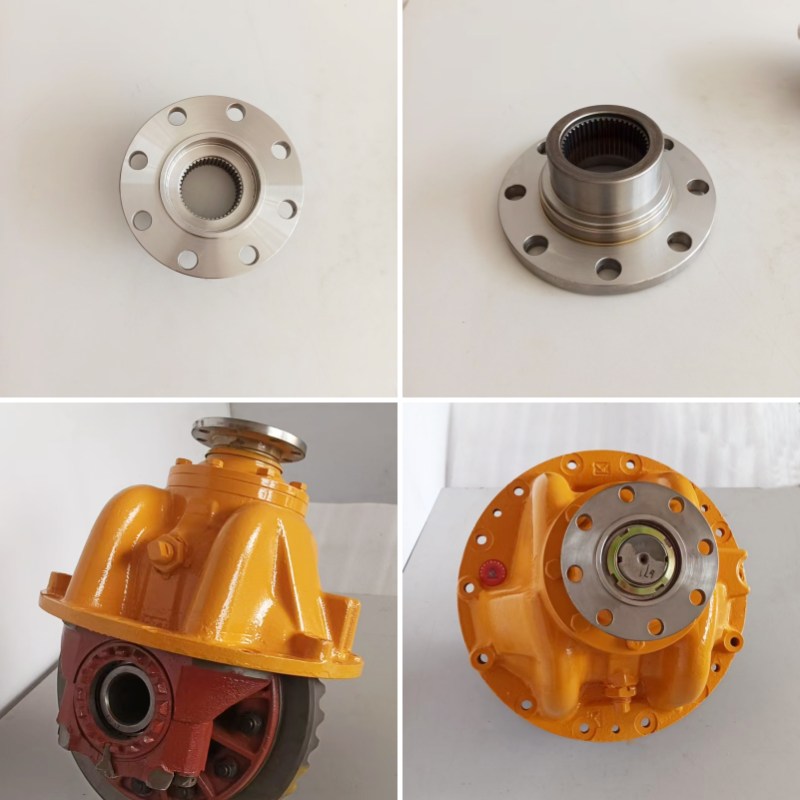

The main reduction flange of the loader is a key component that connects the transmission shaft of the gearbox and the main reducer,
1. Power transmission: Receive torque input from the transmission shaft, drive the driving gear of the main reducer to rotate through splines, achieve 90 ° power steering and increase deceleration torque.
2. Locking and fixing: By using splines, nuts, and anti loosening structures, the flange and gear are tightly matched and will not loosen under high torque and severe vibration.
3. Sealing and protection: The diameter of the flange rod matches the oil seal to prevent gear oil leakage; Its damping function can reduce the impact on the oil seal and lower the risk of oil leakage.
The company has multiple models of flanges

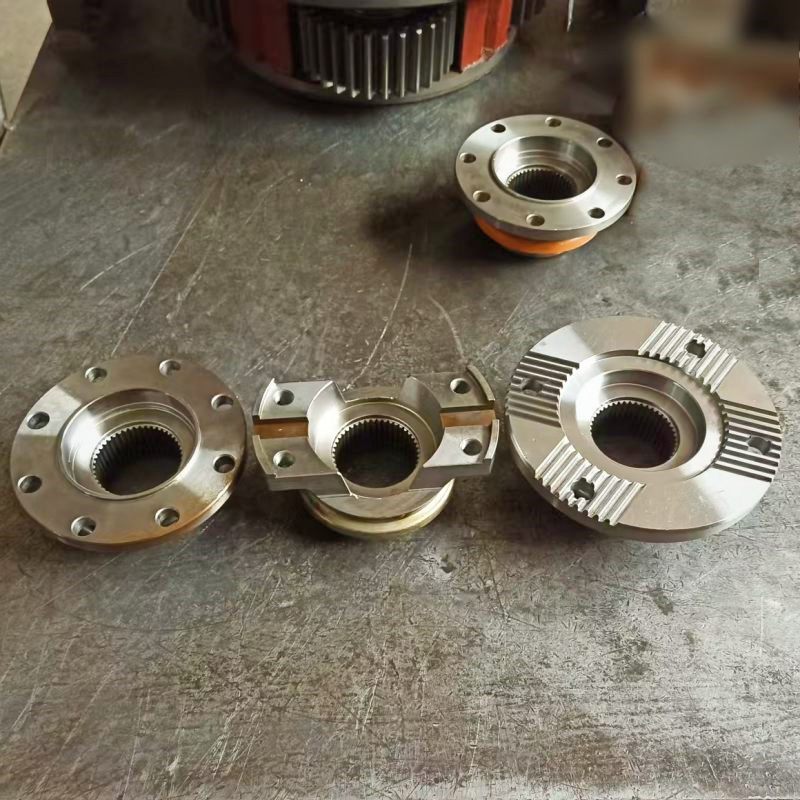

The flange assembly has circular, wing shaped, and end face teeth, with a capacity of 5 tons, 6 tons, and 7 tons. Their use is equipped according to the needs of the front and rear drive axle main reducer assembly of the wheel loader brand and model. Our company selects products with the same configuration according to customer order requirements, verifies whether the material code is correct, and then assembles or packages them for shipment. Track product logistics information to ensure timely delivery of products.
