Lovol Axle Assembly
1. Made from high-quality original parts, it is a complete machine matching product that meets the original factory standards of the equipment.
2. Made of high-quality steel, it is wear-resistant, durable, and wear-resistant, greatly extending the service life of the components.
3. The equipment runs smoothly, with low working noise and outstanding long-term stability and durability.
4. We have our own production workshop and can provide customized processing services according to requirements to meet different usage needs.
5. Factory direct supply eliminates the price difference between intermediaries, with affordable pricing, strict quality inspection at the factory, and stable and reliable quality.
6. The factory warehouse has sufficient inventory, efficient and convenient distribution and transportation processes, and fast delivery speed.

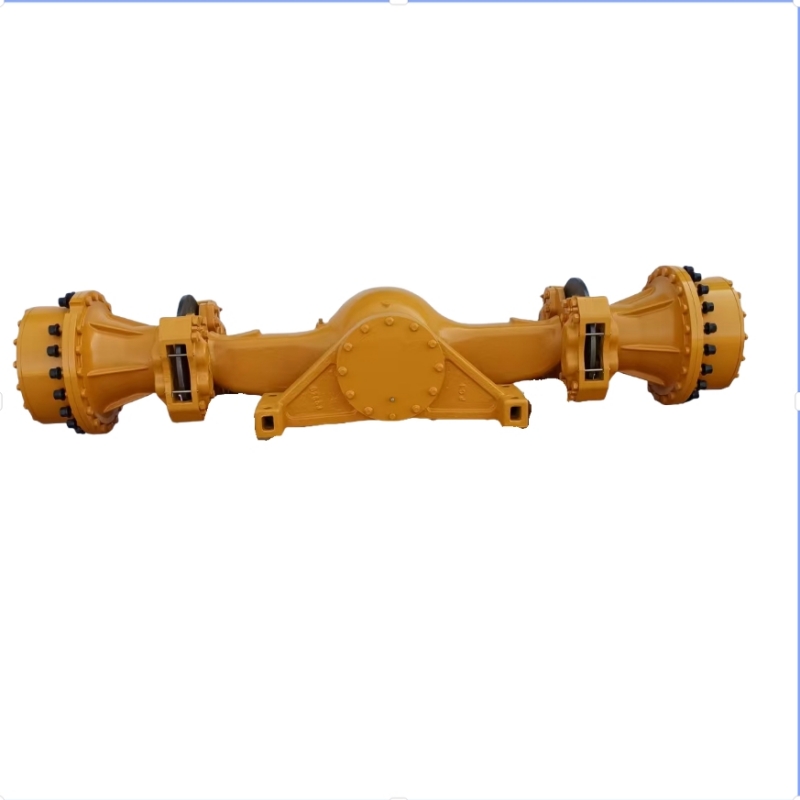

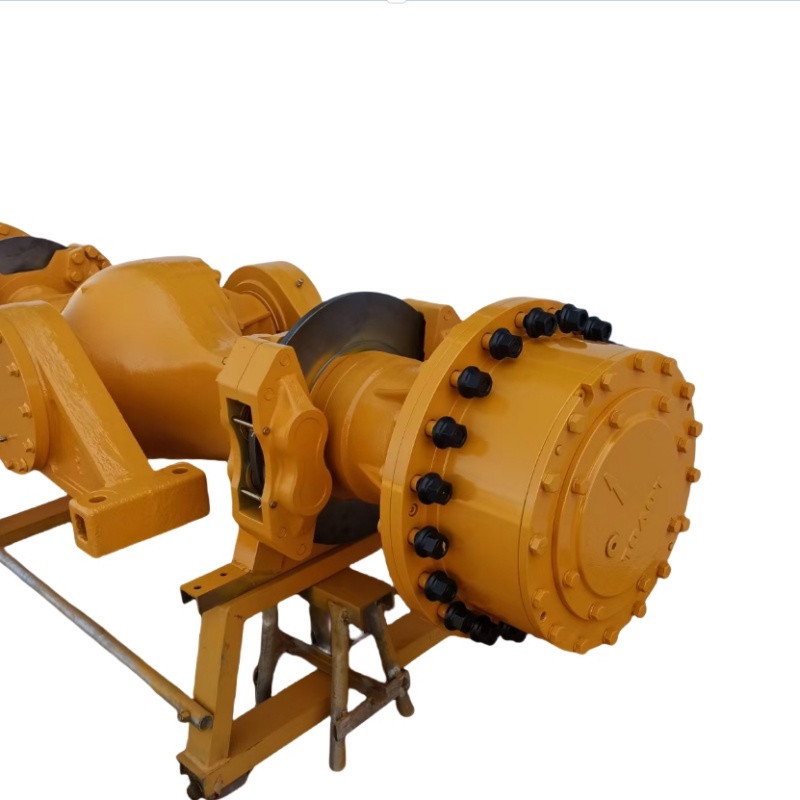

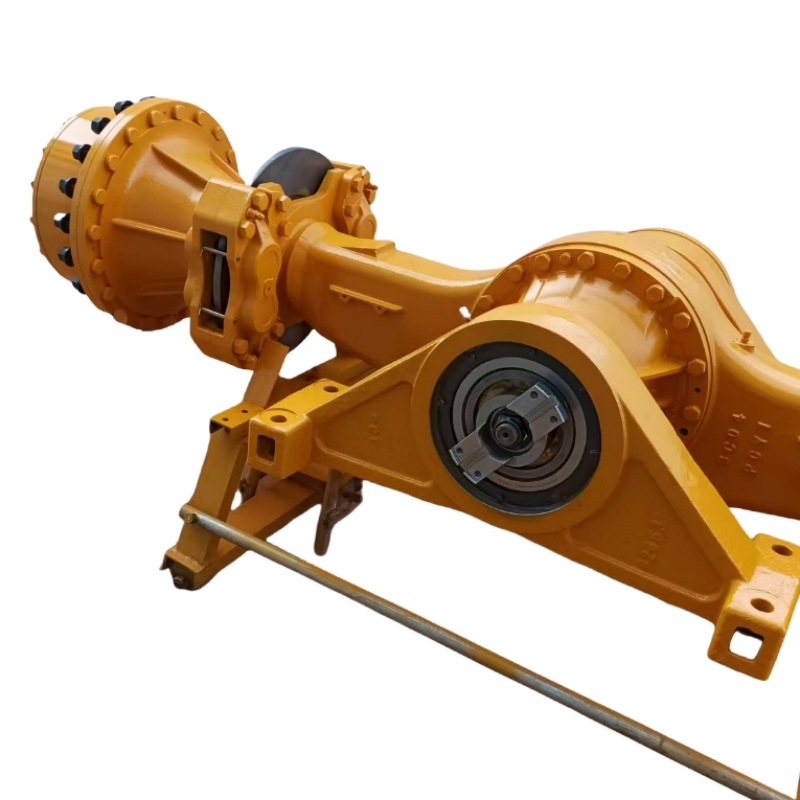

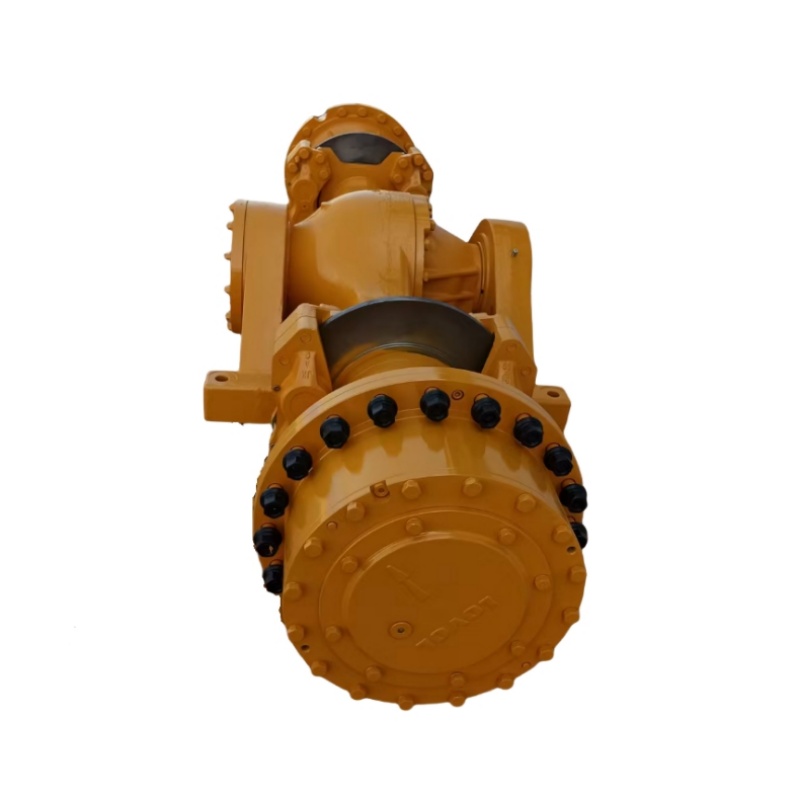

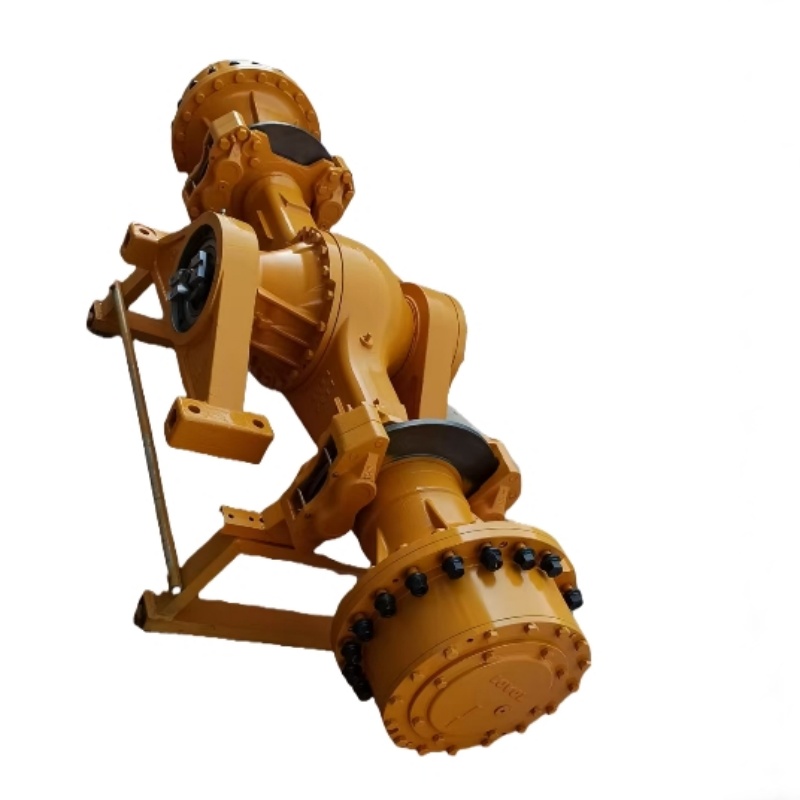

Lovol axle assembly
The axle assembly of the Lovol loading locomotive is the core transmission load-bearing component of the chassis, suitable for 3-7 ton loaders. It is divided into front steering drive axle and rear drive axle, and adopts a two-stage reduction structure of main reduction spiral bevel gear and wheel side planetary gear, as well as wheel side wet braking structure. Composed of axle housing, main reducer, differential, fully floating half shaft, wheel planetary mechanism, wet brake and seals, it achieves deceleration, torque increase and differential steering. Strengthen the impact resistance of cast steel bridge shells, the gears are carburized and quenched for wear resistance and durability, the wet brake has good heat dissipation, multiple oil seals resist mud, water and dust, modularity is easy to maintain, and the original factory matching is high, which can be adapted to heavy-duty operation scenarios such as earthworks, mines, and sand and gravel yards.
Characteristics of the Lovol 7-ton Loader Bridge Assembly
1. Two stage reduction structure: main reduction spiral bevel gear+wheel side planetary reduction, large total transmission ratio, low-speed high torque output, matched with heavy load shovel loading conditions of a 7-ton loader.
2. Wet wheel edge braking: Multi disc wet braking, oil immersed cooling, stable heat dissipation; Brake pads are not prone to high temperature degradation, resistant to dust and mud, and suitable for dusty and humid environments in construction sites, sand and gravel, and mines.
3. Strengthen the cast steel bridge shell: thicken the section, strengthen the support, resist impact and torsion, and withstand the huge impact load during excavation.
4. Carbonized and quenched alloy steel gear pair: The crown teeth, planetary gears, and sun gears are all made of high-strength alloy steel, which is precision machined by carburizing and quenching. The tooth surface has high hardness, wear resistance, and pitting corrosion resistance.
5. Multiple sealing protection: Multiple oil seals are combined at the wheel edge to block sediment from entering and prevent lubricating oil leakage; Reduce the early wear of gears caused by water and dust ingress.
6. Modular design: The main reducer, wheel brakes, and planetary mechanism can be disassembled and repaired separately, making disassembly and maintenance convenient.
The function of Lovol loading locomotive bridge assembly
1. Power deceleration and torque increase: Receive power from the gearbox, reduce speed and increase torque through two-stage deceleration of the main reducer and wheel edges, drive the wheels to generate sufficient traction, and complete digging, pushing, and heavy-duty walking.
2. Change the direction of power: The spiral bevel gear of the main reducer converts the horizontal power of the gearbox into a vertical direction and transmits it to the left and right wheels.
3. Differential function: When the vehicle is turning, it allows the left and right drive wheels to rotate at different speeds to avoid tire slip and wear, ensuring smooth turning.
4. Bearing the overall load: The axle housing bears the weight of the vehicle, excavation impact load, and road impact, and transmits the force to the frame and tires.
5. Service braking: By relying on wet brakes on the wheels, the entire machine can decelerate and stop, ensuring safe operation.
Our company improves logistics distribution and professional after-sales technical services
The company will select accessories based on the customer's order requirements. Then inspect, assemble, conduct experimental testing, package the components, and finally select the most suitable logistics company for shipping the goods. Each step will be handled by professional personnel to ensure accurate and timely delivery of goods in the shortest possible time.
