Wheel Loader Planet Pinion Shaft
1.Uses original-quality components and serves as a supporting product for the main machine.
2.It is made of high-quality steel, featuring wear resistance and durability to extend its service life.
3.Operates smoothly with low noise and high reliability.
4.Planetary shaft is offered by a factory-direct store and supports customized processing.
5.Comes at an affordable price with quality assurance.
6. Shaft is in factory stock, ensuring convenient and fast delivery and transportation.

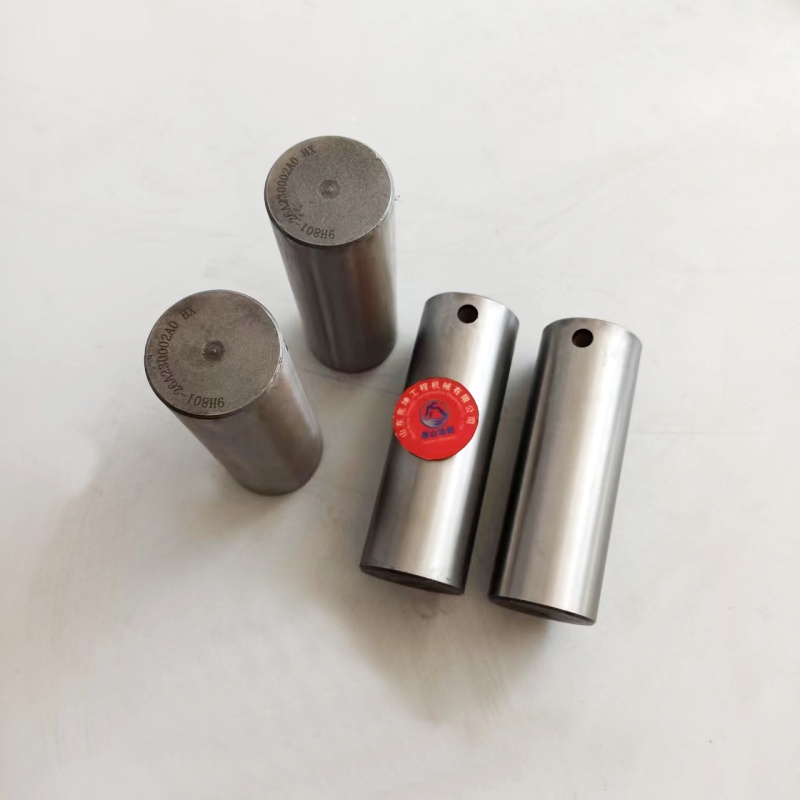

Wheel loader planetary gear shaft
The planetary gear shaft is an internal component of the planetary gear carrier assembly in the wheel side reducer of the drive axle of an 8-ton wheel loader, which is planetary shaft 9H801-26A230002A0. The planetary gear system utilizes shafts for power output, and its main function is to significantly reduce speed and double torque, greatly improving the efficiency of the loader.
The main components of planetary gear carriers and wheel reducers

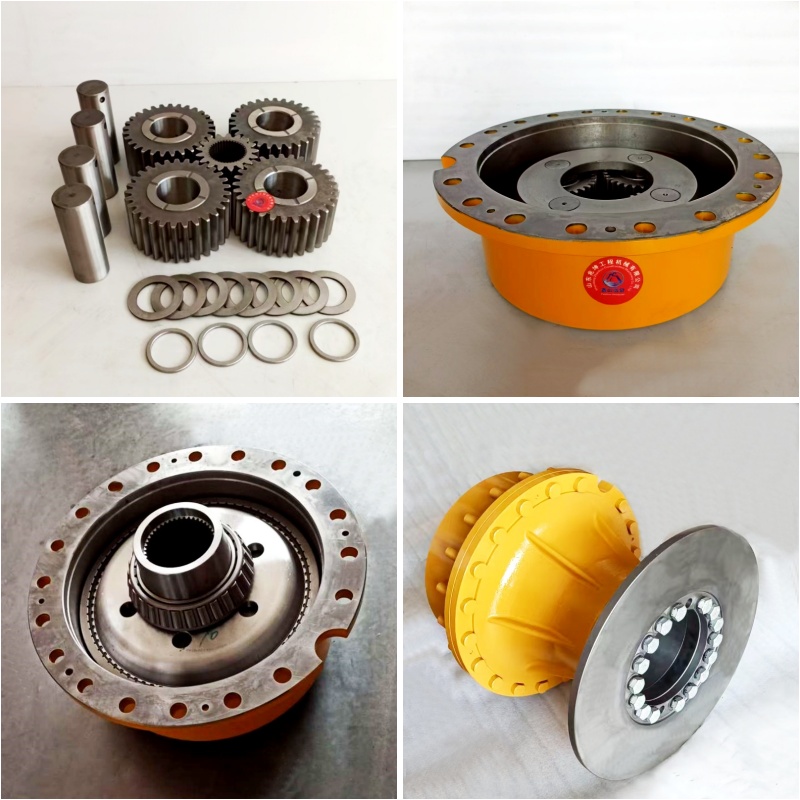

The planetary gear shaft, planetary gear, gasket, planetary carrier, and other components constitute the planetary carrier assembly. This component, together with the ring gear, wheel hub, end cap, bolts, and other components, constitutes the wheel reducer.
The load-bearing function and working principle of the Lovol planetary axis
The Lovol loader 9H801 has four planetary axles on the drive axle planetary carrier, which are usually securely installed in the corresponding holes of the planetary carrier to ensure accurate and stable positioning of the planetary gears relative to the planetary carrier and the sun gear/ring gear. The planetary axle bears the radial force generated when the planetary gears mesh (mainly from the meshing force between the sun gear and the ring gear) and the tangential force generated when transmitting torque. It transfers these loads to the planetary carrier, which is the fundamental function of the planetary axle.
Basic inspection and maintenance of all components of the loader
When maintaining the wheel reducer of the loader, it is necessary to carefully inspect the surfaces of the planetary shaft, journal, and all components for severe wear, scratches, and pitting, whether the shaft is bent or deformed, whether there are cracks, and whether the fit with the planetary gear carrier is loose. Proper maintenance and replacement of damaged parts can greatly improve efficiency and extend the service life of loaders.
