Jincheng Gear Ring Assembly
1. Original quality parts, host supporting products.
2. Adopting high quality steel, wear-resisting and anti-manufacturing, prolonging the use of time.
3. Smooth running, low noise, high reliability.
4. Factory shop, support processing customisation.
5. Affordable price, quality assurance.
6. Factory storage, delivery, transport, convenient and quick.
Jincheng Gear Ring Assembly

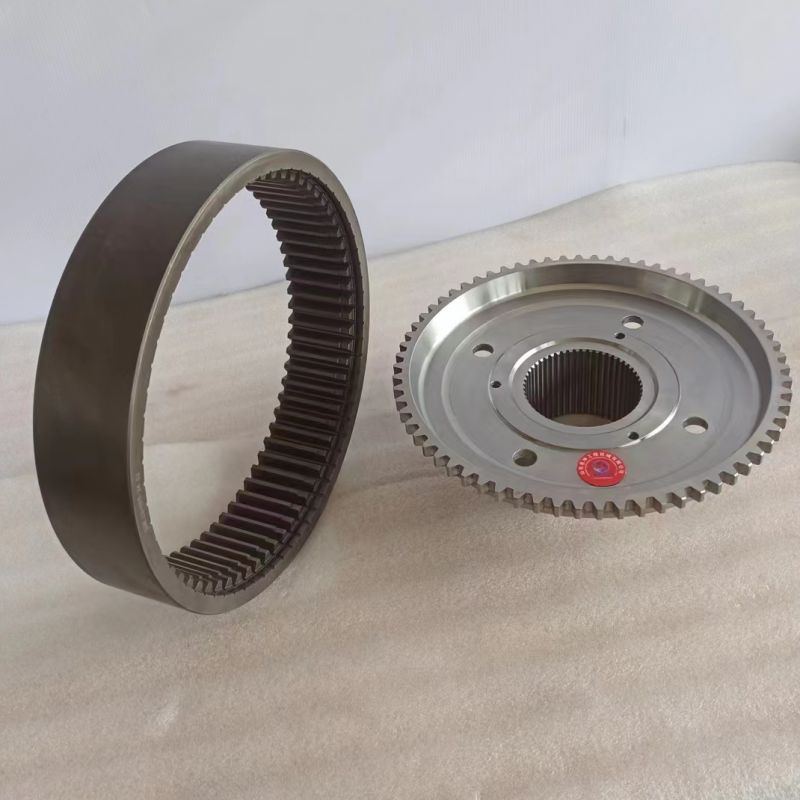

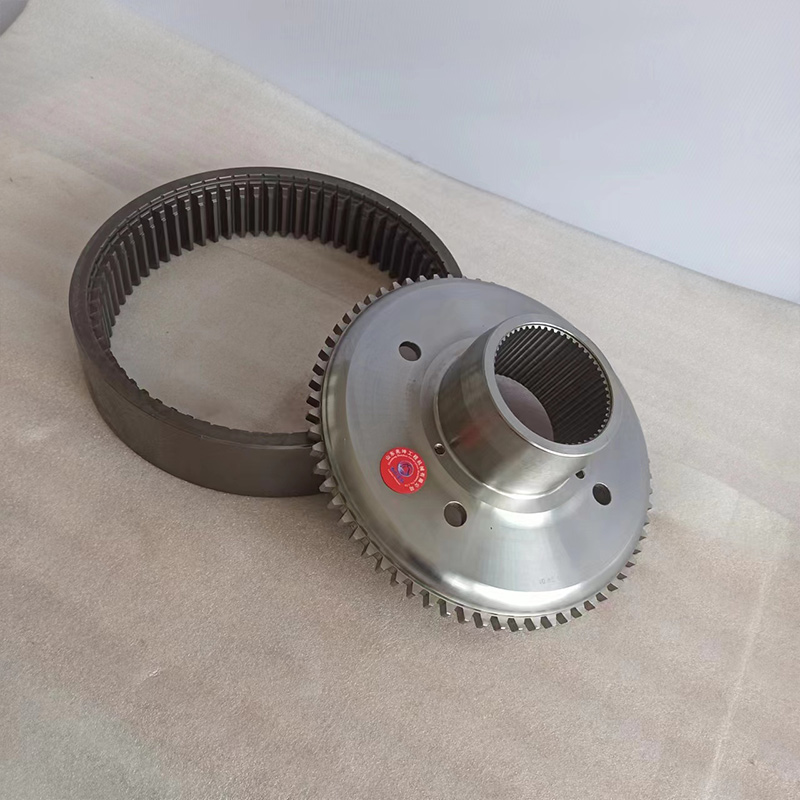

The Jincheng ring gear assembly is a component of the 5-ton wheel loader drive axle assembly. It is a split type, with a 53 spline support and a 67 tooth ring gear, used for the Jincheng drive axle of the 5-ton loader.
The ring gear is fixed to the wheel edge assemblies at both ends of the drive axle housing through half shaft splines. The power transmitted from the main transmission causes the planetary gears to roll along the fixed inner ring gear and drive the planetary carrier and drive wheels to rotate. Improve the meshing conditions between the sun gear and planetary gear.
Product Applications
The ring gear is an important part of the wheel reducer of the loader, and the process of deceleration and torque increase is realized through the meshing with the internal gears of the planetary wheel carrier assembly. The precise design and manufacture of the ring gear ensures a tighter and smoother engagement with other gears. The ring gear is made of high-strength material, which can withstand the huge load and impact generated by the loader during operation, and prolong the life of the loader.
