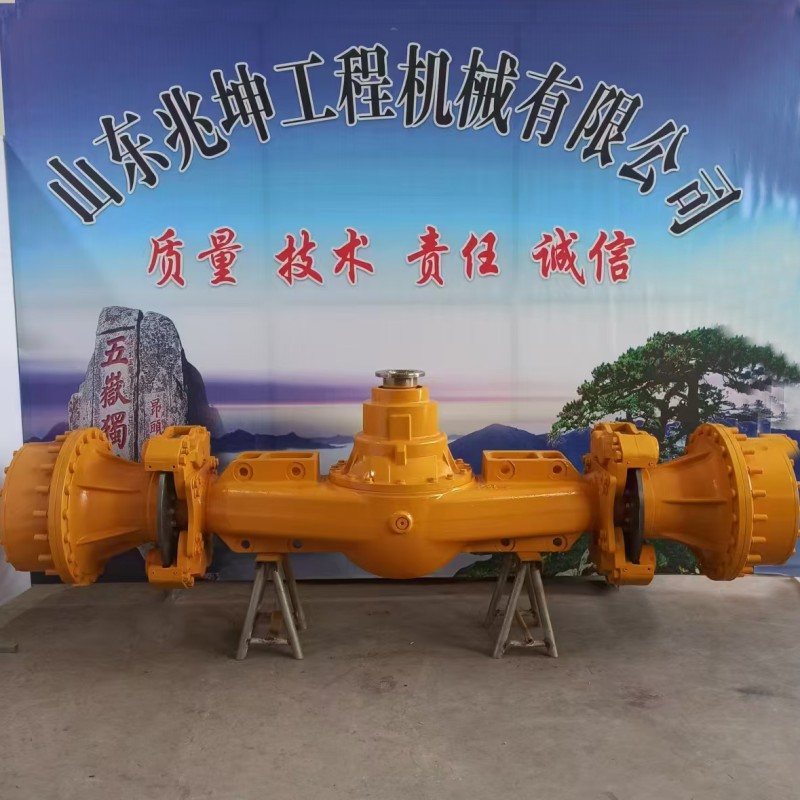

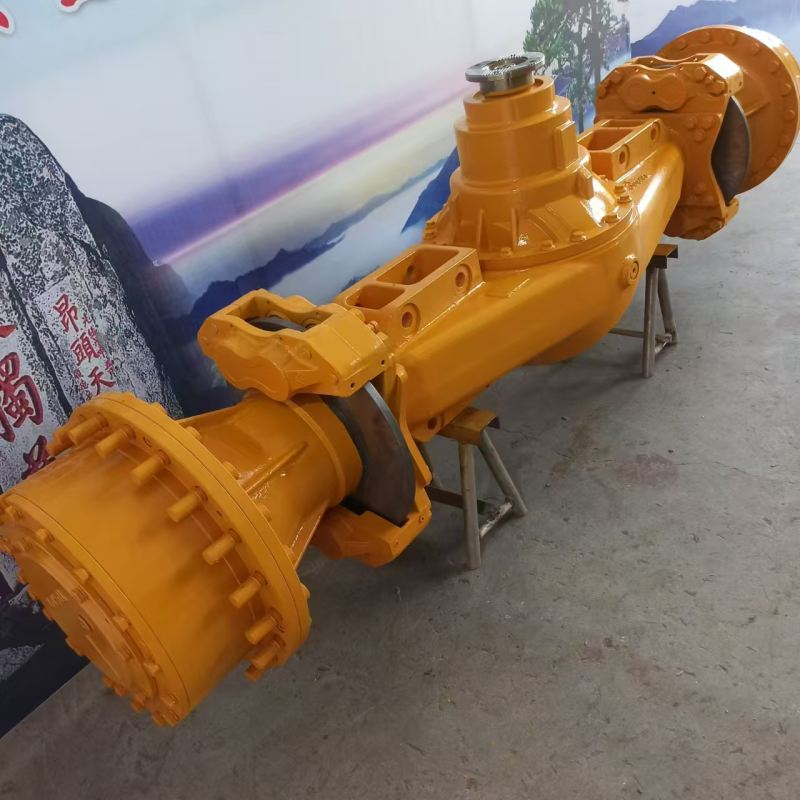

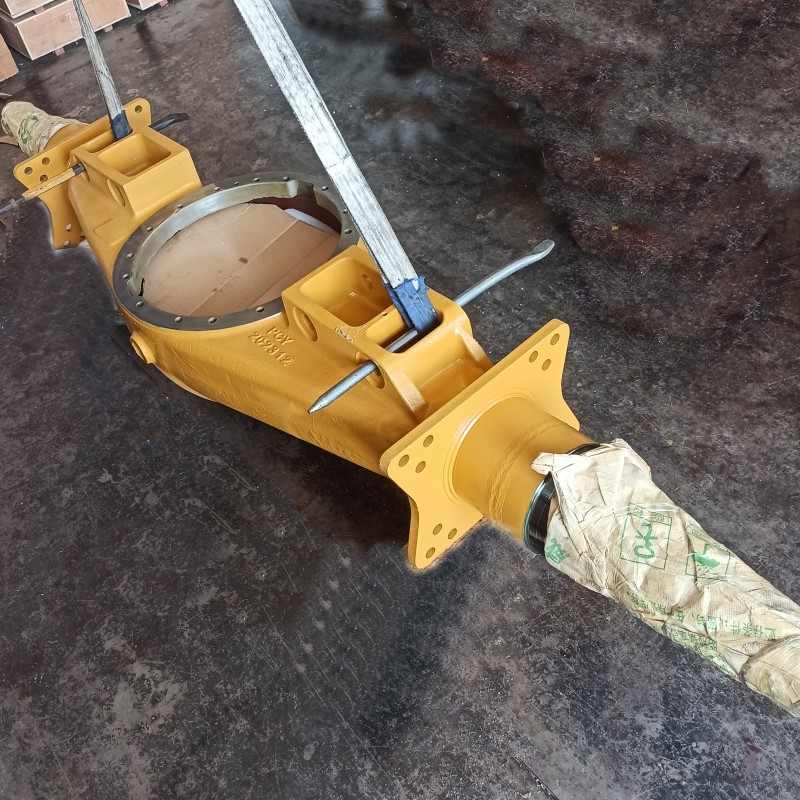

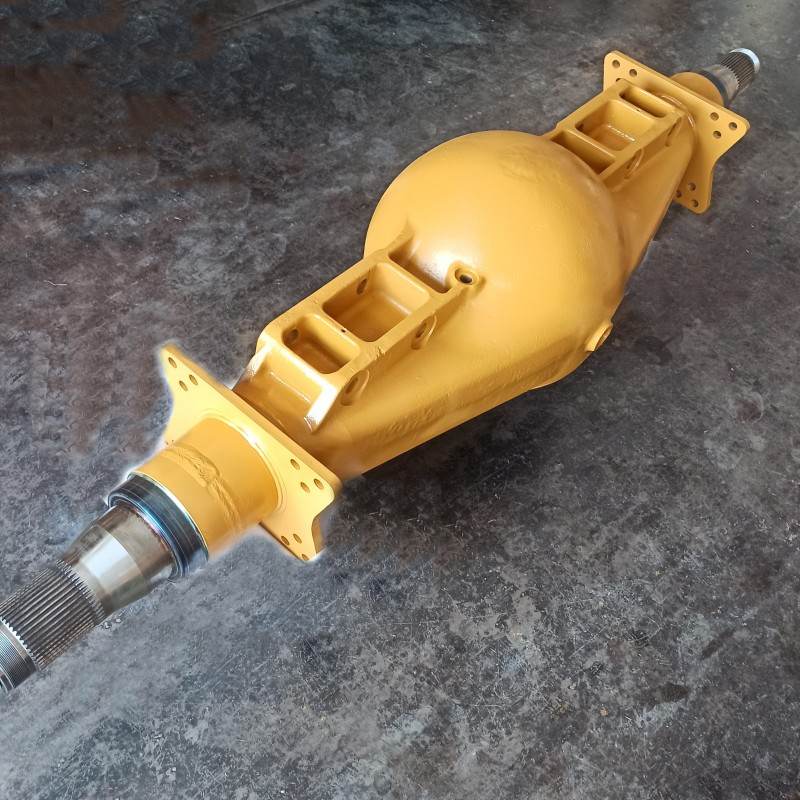

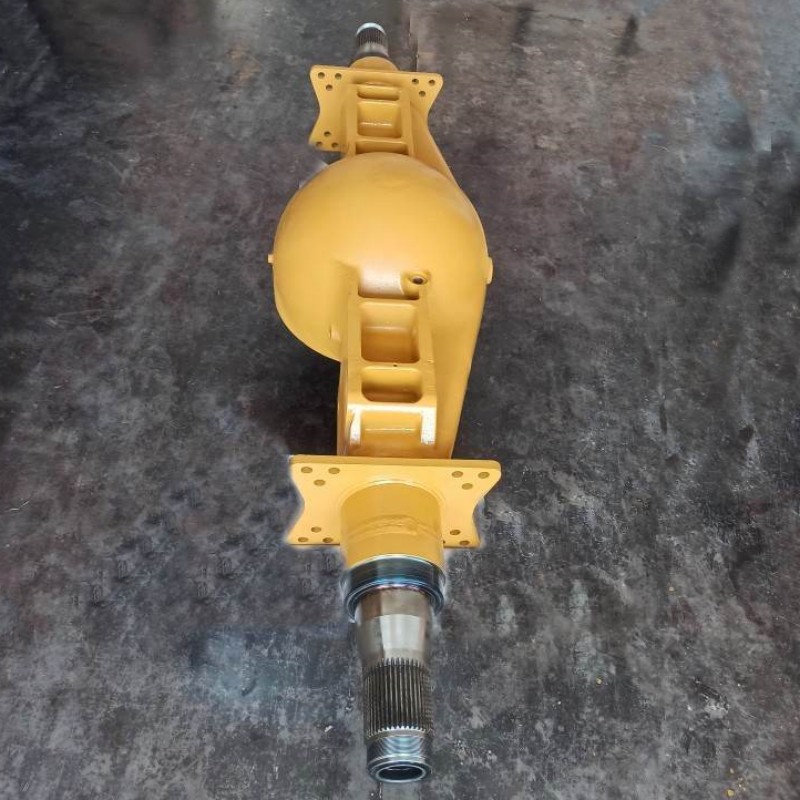

Lovol 7Ton Front Drive Axle Housing Assembly
1. Original quality parts, host supporting products.
2. Adopting high quality steel, wear-resisting and anti-manufacturing, prolonging the use of time.
3. Smooth running, low noise, high reliability.
4. Factory shop, support processing customization.
5. Affordable price, quality assurance.
6. Factory storage, delivery, transport, convenient and quick.
Lovol 7Ton Front Drive Axle Housing Assembly
The loader drive axle is divided into a front axle and a rear axle. Generally speaking, the difference lies in the main driver
Spiral bevel gear pairs have different helical directions. The front axle driving spiral bevel gear is
Left-hand rotation, rear axle driving spiral bevel gear right-hand rotation, the rest of the structure is the same. It mainly includes axle housing, main transmission (including differential), half shaft and wheel reducer. It is composed of device and tire rim assembly.
The Role Of The Drive Axle
Through the driving spiral bevel gear installed vertically in the main drive and meshing with it,
The combined passive spiral bevel gear changes the direction of torque transmission (so that the shaft transmitting torque
lines at 90° to each other) and pass through the main drive, differential, half shafts and
The wheel reduction transmission mechanism reduces the speed of the transmission output shaft and increases the torque.
Generate traction. The axle housing of the drive axle also plays a role in carrying and transmitting force.
