Loader 8-ton Brake Disc
1. The original brake disc of the Lovol 8-ton loader is perfectly matched with theplanetar reducer.
2. Made of high-strength metal, wear-resistant and impact resistant, with significantly extended service life.
3. Stable braking, low noise, and high durability under heavy load working conditions.
4. The factory provides direct supply and customizes processing according to requirements.
5. Strict quality control ensures reliable braking performance.
6. The factory has its own warehousing and logistics, providing fast and convenient delivery services.
Loader 8-ton Brake Disc
The brake disc of an 8-ton wheel loader is usually a heavy-duty disc brake, it is a component of the drive axle planetary reductor assembly. Designed to achieve robust performance in demanding industrial and building environments. The brake disc crucial for ensuring the safe and effective deceleration and stopping of heavy machinery.

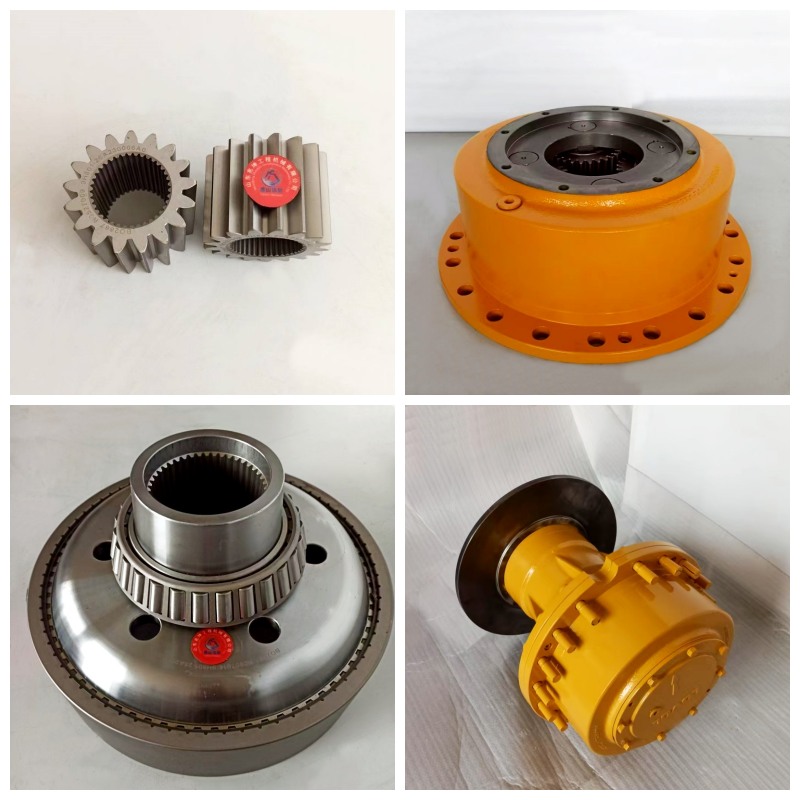

The brake disc, transition disc, wheel hub, connecting sleeve, ring gear, bearing, sun gear, planetary gear carrier assembly, end cover, etc. constitute the drive axle wheel side reducer assembly.
Product Details

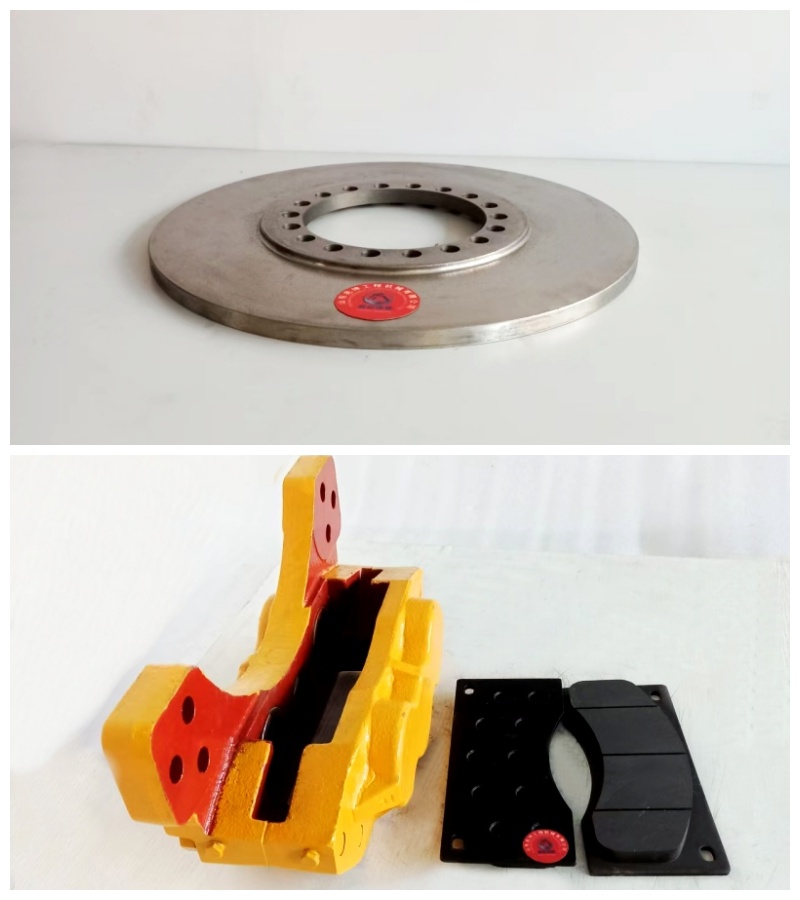

The brake disc is a component of the braking system for the Lovol drive axle of an 8-ton wheel loader, with the code 9H801-26A230001A0. It has an outer diameter of 255mm, an inner diameter of 214mm, a mounting hole with a diameter of 20mm, a center distance of 244mm, and a net weight of 26.2kg. This product is suitable for the matching installation of the Lovol 8-ton wheel loader reducer assembly.
Feature
1.Excellent material properties: usually made of cast iron material, it has the characteristics of wear resistance, heat resistance, corrosion resistance, etc., and can withstand friction and pressure during high temperature and high-speed braking.
2.Reliable braking effect: The surface of the brake disc is usually designed with grooves or protrusions, which can increase the friction with the brake pads, improve the braking effect, and enhance the braking force.
3.Good heat dissipation performance: The disc structure has a large heat dissipation surface area, and the installation position is exposed, effectively dissipating heat and preventing the brake disc from deforming due to overheating, ensuring stable braking performance.
4.Uniform braking torque: The braking force of the brake disc on the left and right wheels is relatively more even, which can provide a more stable braking experience, making the loader smoother during the braking process and less prone to running off.
Application
The brake disc of the 8-ton loader is used for the Lovol heavy-duty wheel loader in the following operating conditions:
Construction Sites: For general material handling, loading trucks with soil, gravel, or aggregate, and site preparation.
Mining and quarrying: In open-pit mining operations, strong braking is crucial for safety in slopes and debris dense environments.
Agriculture and industry: carrying out storage and loading tasks in large storage yards such as grain, coal, or wood.
Waste management: moving large amounts of materials in landfills and recycling centers.
